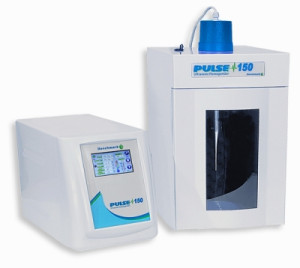

Pulse 150™ Ultrasonic Homogenizer
The Pulse 150™ Ultrasonic Homogenizer uses cavitation and ultrasonic waves to break cells in suspension, shear DNA and prepare samples for ChIP assays. With up to 150 watts of power, the unit can process samples from 0.1mL to 150mL with the appropriate horn.
All components needed for homogenization are included with the Pulse 150 - a controller, transducer, temperature probe, 6mm diameter titanium alloy horn and wrenches to change horns. A soundproof box with sample platform is also supplied as standard. The box helps to reduce the noise generated by the sonicator. The 6mm horn is appropriate for volumes from 10ml to 100ml. Optional horns are available for other volumes.
Operating parameters are set and viewed on the 4.3" color touch screen. Pulsed operation is easily programmed as is the power level. Twenty programs can be stored in memory and recalled as needed. Alarms alert the user to over temperature, over/no load and expiration of time.
Technical Specifications
| Power | 1.5 - 150 W, continuously adjustable |
| Frequency | 20 - 25 KHz |
| Cycle Time (pulse on/off) | 0.1 - 99.9 sec |
| Timer | 1 sec - 99 hours, 59 min, 59 sec |
| Duty Cycle | 0.1 - 99.9% |
| Volume | 0.1 - 150 ml |
| Program Memory | 20 programs |
| Display Control | 4.3" full color touch screen |
| Horn | 6mm titanium (others available) |
| Alarms | No load, over load, end of run, over temperature |
| Controller Dimensions (W x D x H) | 12 x 18.5 x 16.9 in. |
| Soundproof Enclosure Dimensions (W x D x H) | 13.8 x 13.8 x 21.7 in |
| Electrical | 120 or 240V, 50/60Hz |
| Warranty | 2 years |
