Owl™ EasyCast™ B2 Mini Gel Electrophoresis Systems
By Owl Separation Systems

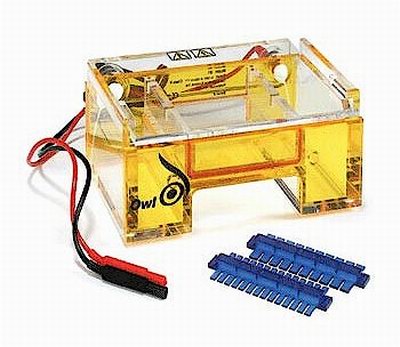

The Owl EasyCast™ horizontal B2 mini gel system provides the most flexibility in a very small footprint. The longer gel length and the two comb slots give you the flexibility of running 8 to 48 samples on one gel. The optional multi load tray can increase the maximum number of samples to 108 in a multichannel pipette format. The simple to use casting method, and multiple comb and tray options, makes this Owl's most popular system.
Owl offers a wide range of combs. The two comb slots on the U.V. Transmissible (UVT) gel tray, double your sample capacity by doubling the number of sample wells. Heavy duty, one piece combs eliminate comb assembly. UVT gel trays are silk screened with a florescent ruler for easy measurement of bands. This system is available with optional buffer exchange ports, Cat.No. 669-B2-BP, for use with an external recirculation pump.
Model B2 EasyCast™ Mini Gel Electrophoresis System
Gel Size: (W x L) 12cm x 14cm
Footprint: (W x L x H)18cm x 24.5cm x 9.5cm
Running Buffer Volume: 800mL
