Microscope Illuminators

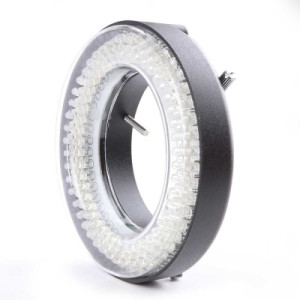

The LED Ring Illuminator produces intense white light for long microscopy observation sessions. The 144 LED intensity direction adjustable ring light has a mounting size up to 2-1/2" (64mm) in diameter. The light ring is consisted of 4 individual portions (4 lighting zones) that can be turned on/off separately.

You may use the feature to change lighting directions and obtain the best illumination for your application. The ring light has 2-1/2" (64mm) inside and 4" (100mm) outside diameters. It works with a 110-220VAC power supply and comes with a 1-7/8" (48mm in diameter) ring adapter.

With variable intensity control, it provides cool, even, intense and focused shadow-free illumination. It is an ideal durable cool light source for all stereo microscopes, especially for gemological, coin and gem/jewelry microscopes. This kit comes with one year warranty against manufacturing defects.

Features:

• High-power LED ring light
• 144 bright white LED bulbs with adjustable intensity
• 4 Segment illumination
• 55-200mm working distance
• Lighting direction changeable
• Color temperature 6,500K
• Illuminance 23,000 Lux at 100mm
• Intense and focused shadow-free illumination
• Long life and low energy consumption
• Including mounting ring
• Remote control included

Ring Illuminator

Add to Cart
Cat.No.	Name	EA
119-ELE-1973	Ring illuminator with 144 LEDs with adjustable intensity, external power supply 100-240V	$336.81 1/EA		Add To Favorites

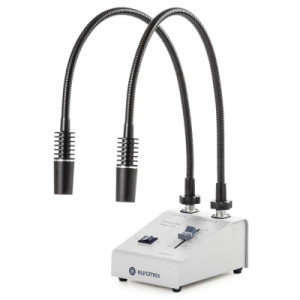

Dual LED Illuminator Cold Light Source

For stereo microscopy, choosing the right illumination is essential to obtain a perfect image with maximum resolution. LED light sources have a much longer lifetime, consume less energy and produce less heat than halogen light source alternatives. The Dual LED Illuminator is a compact and highly portable LED light source.

Features:

• Ideal for life and materials sciences, various industrial applications and for stereo microscopy
• Light source with two self-sustaining gooseneck-type guides, equipped with 2x 3 W white 6500K power LED.
• Each self-sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm
• The light source version does not require bulb changing like halogen light sources and has a long-life span and low energy consumption
• The light source produces white light and there is no color temperature shifting when dimming
• Evenly Illuminates specimen without heating
• 2-year warranty

Add to Cart
Cat.No.	Name	EA
119-ELE-5207	Dual LED illuminator	$223.51 1/EA		Add To Favorites
