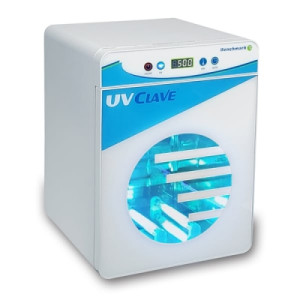

UV Clave™ Ultraviolet Chamber
Short-wave UV light is an effective method for the disinfection of surface DNA, RNA and microorganisms. With the UVClave chamber, highly focused UV irradiation is used to disinfect tools, vessels and other research items, eliminating up to 99% of surface contamination.
Unlike most UV chambers, the UV Clave includes powerful UV-C bulbs on both the top and bottom of the chamber. When combined with our proprietary shelf that allows for >90% of UV-C light transmission and highly reflective chamber walls, the result is true 360° exposure with no blind spots.
Exposure time is adjustable. An optional heating cycle can be added to assist in drying items that may have been washed or chemically disinfected prior to insertion.
To protect users, the integrated auto shut-off prevents illumination when the door is open. Optional indicators are available to test for proper exposure levels.
Technical Specifications
| UV Bulbs | 6 x 4W |
| UV Wavelength | 254nm |
| UV Intensity | +500µW/cm2 |
| UV Dosage | 600mJ/cm2 |
| UV Timer | 5-20 min (5 min increments) |
| Heater Timer | 30-120 min (30 min increments) |
| Heater Temp | 55°C |
| Chamber Dimensions | 8.5 x 10.1 x 12.2 in. |
| Ext. Dimensions | 11.5 x 10.5 x 15.7 in. |
| Max Height | 30 cm |
| Shelf Dimensions | 10 x 8 in. |
| Shelf Material | 2 stainless steel wire, 1 UV-C transparent |
| Weight | 11 lbs |
| Electrical | 120V, 60Hz or 230V, 50Hz, 110W |
| Warranty | 2 years |
