Ohaus® Defender® 3000 Hybrid Bench Scales

By Ohaus

Ohaus has gone beyond weighing!

View the NEW full line of equipment

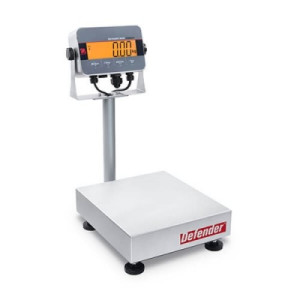

Ohaus® Defender® 3000 Hybrid Bench Scales

The Defender 3000 Hybrid bench scales are ideal for general weighing, simple counting and checkweighing applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series features a simple, yet rugged design and stainless steel indicator with tactile keys, multicolor backlit LCD display, and built-in rechargeable battery.


Unique Features:

  • Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode display changes color (yellow/green/red) to alert when within the target weight range.
  • This industrial scale features a 304 stainless steel platform, powder-coated steel tubular frame, column and aluminum load cell. Indicator features a stainless steel housing and mounting bracket.
  • Features software for Parts Counting, Checkweighing and Totalization. Includes RS232 with optional second port USB Device or Ethernet for printing or data connectivity.


Column Mount Bench Scales

Model i-D33XW15B1R1 i-D33XW30B1R1 i-D33XW75B1R1 i-D33XW75B1L2 i-D33XW150B1L2
Capacity x
Default Readability		 15 kg x 2 g
30 lb x 0.005 lb
480 oz x 0.1 oz		 30 kg x 5 g
60 lb x 0.01 lb
960 x 0.2 oz		 75 kg x 10 g
150 lb x 0.02 lb
2,400 oz x 0.5 oz		 75 kg x 10 g
150 lb x 0.02 lb
2,400 oz x 0.5 oz		 150 kg x 20 g
300 lb x 0.05 lb
4,800 oz x 1 oz
Capacity x
Certified/Approved Readability		 15 kg x 5 g
30 lb x 0.01 lb
480 oz x 0.2 oz		 15 kg x 5 g
30 lb x 0.01 lb
480 oz x 0.2 oz		 75 kg x 50 g
150 lb x 0.05 lb
2,400 oz x 1 oz		 75 kg x 50 g
150 lb x 0.05 lb
2,400 oz x 1 oz		 150 kg x 50 g
300 lb x 0.1 lb
Maximum Displayed Resolution 1:7,500 1:6,000 1:7,500 1:7,500 1:7,500
Linearity/Repeatability ±1d
Maximum Certified Resolution 1:3,000
Indicator 304 stainless steel indicator
Column 330 mm / 13 in powder-coated steel 680 mm / 26.8 in powder-coated steel
Base Construction Stainless steel removable weighing platform, powder-coated steel base construction,aluminum loadcell silicon sealed against moisture
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions
(A x B x C x D x E x F)		 14 x 12 x 4.8 x 3 x 21.3 x 19.3 in 21.7 x 16.5 x 5.3 x 3.1 x 35.3 x 27 in



Model i-D33XW150B1X2 i-D33XW300B1X2
i-D33XW300B1V3 i-D33XW600B1V3
Capacity x
Default Readability		 150 kg x 20 g
300 lb x 0.05 lb
4,800 oz x 1 oz		 300 kg x 50 g
600 lb x 0.1 lb		 300 kg x 50 g
600 lb x 0.1 lb		 600 kg x 100 g
1,200 lb x 0.2 lb
Capacity x
Certified/Approved Readability		 150 kg x 50 g
300 lb x 0.1 lb		 300 kg x 100 g
600 lb x 0.2 lb		 300 kg x 100 g
600 lb x 0.2 lb		 600 kg x 200 g
1,200 lb x 0.5 lb
Maximum Displayed Resolution 1:7,500 1:6,000 1:6,000 1:6,000
Linearity/Repeatability ±1d
Maximum Certified Resolution 1:3,000
Indicator 304 stainless steel indicator
Column 680 mm / 26.8 in powder-coated steel 980 mm / 38.6 in powder-coated steel
Base Construction Stainless steel removable weighing platform, powder-coated steel base construction,aluminum loadcell silicon sealed against moisture
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions
(A x B x C x D x E x F)		 25.6 x 19.7 x 5.9 x 3.5 x 35.3 x 30.9 in 31.5 x 23.6 x 6.1 x 3.5 x 47 x 36.7 in




Cat.No.ModelEA
316-30685177 i-D33XW15B1R1 $1190.00
1/EAAdd To Favorites		 Add To Favorites
316-30685178 i-D33XW30B1R1 $1190.00
1/EAAdd To Favorites		 Add To Favorites
316-30685179 i-D33XW75B1R1 $1190.00
1/EAAdd To Favorites		 Add To Favorites
316-30685185 i-D33XW75B1L2 $1401.00
1/EAAdd To Favorites		 Add To Favorites
316-30685190 i-D33XW150B1L2 $1401.00
1/EAAdd To Favorites		 Add To Favorites
316-30685195 i-D33XW150B1X2 $1509.00
1/EAAdd To Favorites		 Add To Favorites
316-30685196 i-D33XW300B1X2 $1509.00
1/EAAdd To Favorites		 Add To Favorites
316-30685201 i-D33XW300B1V3 $1617.00
1/EAAdd To Favorites		 Add To Favorites
316-30685202 i-D33XW600B1V3 $1617.00
1/EAAdd To Favorites		 Add To Favorites

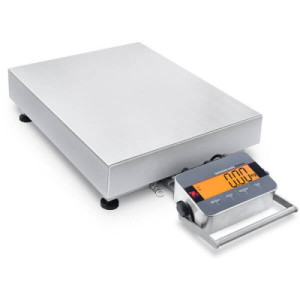

Front Mount Bench Scales

Front Mount Bench Scales
Model i-D33XW15B1R5
i-D33XW30B1R5 i-D33XW75B1R5
i-D33XW75B1L5
Capacity x
Default Readability		 15 kg x 2 g
30 lb x 0.005 lb
480 oz x 0.1 oz		 30 kg x 5 g
60 lb x 0.01 lb
960 x 0.2 oz		 75 kg x 10 g
150 lb x 0.02 lb
2,400 oz x 0.5 oz		 75 kg x 10 g
150 lb x 0.02 lb
2,400 oz x 0.5 oz
Capacity x
Certified/Approved Readability		 15 kg x 5 g
30 lb x 0.01 lb
480 oz x 0.2 oz		 30 kg x 10 g
60 lb x 0.02 lb
960 oz x 0.5 oz		 75 kg x 50 g
150 lb x 0.05 lb
2,400 oz x 1 oz		 75 kg x 50 g
150 lb x 0.05 lb
2,400 oz x 1 oz
Maximum Displayed Resolution 1:7,500 1:6,000 1:7,500 1:7,500
Linearity/Repeatability ±1d
Maximum Certified Resolution 1:3,000
Indicator 304 stainless steel indicator
Mount 304 stainless steel front-mount bracket with handle
Base Construction Stainless steel removable weighing platform, powder-coated steel base construction,aluminum loadcell silicon sealed against moisture
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions
(A x B x C x D x E x F)		 14 x 12 x 4.8 x 3 x 5.1 x 25.4 in 21.7 x 16.5 x 5.3 x 3.1 x 5.2 x 33.1 in



Model i-D33XW150B1L5
i-D33XW150B1X5
i-D33XW300B1X5
Capacity x
Default Readability		 150 kg x 20 g
300 lb x 0.05 lb
4,800 oz x 1 oz		 150 kg x 20 g
300 lb x 0.05 lb
4,800 oz x 1 oz		 300 kg x 50 g
600 lb x 0.1 lb
Capacity x
Certified/Approved Readability		 150 kg x 50 g
300 lb x 0.1 lb		 150 kg x 50 g
300 lb x 0.1 lb		 300 kg x 100 g
600 lb x 0.2 lb
Maximum Displayed Resolution 1:7,500 1:7,500 1:6,000
Linearity/Repeatability ±1d
Maximum Certified Resolution 1:3,000
Indicator 304 stainless steel indicator
Mount 304 stainless steel front-mount bracket with handle
Base Construction Stainless steel removable weighing platform, powder-coated steel base construction,aluminum loadcell silicon sealed against moisture
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions
(A x B x C x D x E x F)		 21.7 x 16.5 x 5.3 x 3.1 x 5.2 x 33.1 in 25.6 x 19.7 x 5.9 x 3.5 x 5.2 x 37 in




Cat.No.ModelEA
316-30685206 i-D33XW15B1R5 $1136.00
1/EAAdd To Favorites		 Add To Favorites
316-30685207 i-D33XW30B1R5 $1136.00
1/EAAdd To Favorites		 Add To Favorites
316-30685208 i-D33XW75B1R5 $1136.00
1/EAAdd To Favorites		 Add To Favorites
316-30685214 i-D33XW75B1L5 $1352.00
1/EAAdd To Favorites		 Add To Favorites
316-30685215 i-D33XW150B1L5 $1352.00
1/EAAdd To Favorites		 Add To Favorites
316-30685220 i-D33XW150B1X5 $1461.00
1/EAAdd To Favorites		 Add To Favorites
316-30685221 i-D33XW300B1X5 $1461.00
1/EAAdd To Favorites		 Add To Favorites
