Ohaus® Defender® 3000 Washdown Bench Scales

The Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolor backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.

Unique Features:

• Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode display changes olor (yellow/green/red) to alert when within the target weight range.
• This tough industrial scale features a 304-stainless steel platform, frame, column and IP67 load cell. Indicator features an IP66 protected 304-stainless steel housing and mounting bracket.
• Features software for Parts Counting, Checkweighing and Totalization. Includes RS232 with optional second port USB Device or Ethernet for printing or data connectivity.

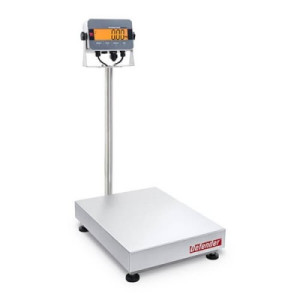

Column Mount Bench Scales

Model	i-D33XW15C1R6	i-D33XW30C1R6	i-D33XW75C1R6	i-D33XW75C1L7	i-D33XW150C1L7	i-D33XW150C1X7	i-D33XW300C1X7
Capacity x Default Readability	15 kg x 2 g 30 lb x 0.005 lb 480 oz x 0.1 oz	30 kg x 5 g 60 lb x 0.01 lb 960 x 0.2 oz	75 kg x 10 g 150 lb x 0.02 lb 2,400 oz x 0.5 oz	75 kg x 10 g 150 lb x 0.02 lb 2,400 oz x 0.5 oz	150 kg x 20 g 300 lb x 0.05 lb 4,800 oz x 1 oz	150 kg x 20 g 300 lb x 0.05 lb 4,800 oz x 1 oz	300 kg x 50 g 600 lb x 0.1 lb
Capacity x Certified/Approved Readability	15 kg x 5 g 30 lb x 0.01 lb 480 oz x 0.2 oz	30 kg x 10 g 60 lb x 0.02 lb 960 oz x 0.5 oz	75 kg x 50 g 150 lb x 0.05 lb 2,400 oz x 1 oz	75 kg x 50 g 150 lb x 0.05 lb 2,400 oz x 1 oz	150 kg x 50 g 300 lb x 0.1 lb	150 kg x 50 g 300 lb x 0.1 lb	300 kg x 100 g 600 lb x 0.2 lb
Maximum Displayed Resolution	1:7,500	1:6,000	1:7,500	1:7,500	1:7,500	1:7,500	1:6,000
Linearity/Repeatability	±1d
Maximum Certified Resolution	1:3,000
Indicator	304 stainless steel indicator
Column	330 mm / 13 in stainless steel			680 mm / 26.8 in stainless steel
Base Construction	Stainless steel removable weighing platform with stainless steel frame,silicon sealed IP67 stainless steel loadcell
Safe Overload Capacity	150% of maximum capacity
Stabilization Time	Within 1 second
Operating Temperature Range	14°F to 104°F / -10°C to 40°C
Scale Dimensions (A x B x C x D x E x F)	14 x 12 x 4.8 x 3 x 21.3 x 19 in			21.7 x 16.5 x 5.3 x 3.1 x 35.3x 27 in		25.6 x 19.7 x 5.9 x 3.5 x 35.2 x 30.9 in



Add to Cart
Cat.No.	Model	EA
316-30685209	i-D33XW15C1R5	$1725.00 1/EA		Add To Favorites
316-30685210	i-D33XW30C1R5	$1750.00 1/EA		Add To Favorites
316-30685211	i-D33XW75C1R5	$1750.00 1/EA		Add To Favorites
316-30685216	i-D33XW75C1L5	$1975.00 1/EA		Add To Favorites
316-30685217	i-D33XW150C1L5	$1975.00 1/EA		Add To Favorites
316-30685222	i-D33XW150C1X5	$2450.00 1/EA		Add To Favorites
316-30685223	i-D33XW300C1X5	$2450.00 1/EA		Add To Favorites

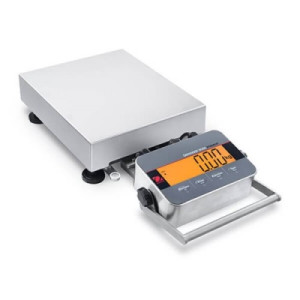

Front Mount Bench Scales

Model	i-D33XW15C1R5	i-D33XW30C1R5	i-D33XW75C1R5	i-D33XW75C1L5	i-D33XW150C1L5	i-D33XW150C1X5	i-D33XW300C1X5
Capacity x Default Readability	15 kg x 2 g 30 lb x 0.005 lb 480 oz x 0.1 oz	30 kg x 5 g 60 lb x 0.01 lb 960 x 0.2 oz	75 kg x 10 g 150 lb x 0.02 lb 2,400 oz x 0.5 oz	75 kg x 10 g 150 lb x 0.02 lb 2,400 oz x 0.5 oz	150 kg x 20 g 300 lb x 0.05 lb 4,800 oz x 1 o	150 kg x 20 g 300 lb x 0.05 lb 4,800 oz x 1 o	300 kg x 50 g 600 lb x 0.1 lb
Capacity x Certified/Approved Readability	15 kg x 5 g 30 lb x 0.01 lb 480 oz x 0.2 oz	30 kg x 10 g 60 lb x 0.02 lb 960 oz x 0.5 oz	75 kg x 50 g 150 lb x 0.05 lb 2,400 oz x 1 oz	75 kg x 50 g 150 lb x 0.05 lb 2,400 oz x 1 oz	150 kg x 50 g 300 lb x 0.1 lb	150 kg x 50 g 300 lb x 0.1 lb	300 kg x 100 g 600 lb x 0.2 lb
Maximum Displayed Resolution	1:7,500	1:6,000	1:7,500	1:7,500	1:7,500	1:7,500	1:6,000
Linearity/Repeatability	±1d
Maximum Certified Resolution	1:3,000
Indicator	304 stainless steel indicator
Mount	304 stainless steel front-mount bracket with handle
Base Construction	Stainless steel removable weighing platform with stainless steel frame,silicon sealed IP67 stainless steel loadcel
Safe Overload Capacity	150% of maximum capacity
Stabilization Time	Within 1 second
Operating Temperature Range	14°F to 104°F / -10°C to 40°C
Scale Dimensions (A x B x C x D x E x F)	14 x 12 x 4.8 x 3 x 5.1 x 25.4 in			21.7 x 16.5 x 5.3 x 3.1 x 5.2 x 33.1 in		25.6 x 19.7 x 5.9 x 3.5 x 35.2 x 30.9 in



Add to Cart
Cat.No.	Model	EA
316-30685180	i-D33XW15C1R6	$1795.00 1/EA		Add To Favorites
316-30685181	i-D33XW30C1R6	$1795.00 1/EA		Add To Favorites
316-30685182	i-D33XW75C1R6	$1795.00 1/EA		Add To Favorites
316-30685191	i-D33XW75C1L7	$2025.00 1/EA		Add To Favorites
316-30685192	i-D33XW150C1L7	$2025.00 1/EA		Add To Favorites
316-30685197	i-D33XW150C1X7	$2495.00 1/EA		Add To Favorites
316-30685198	i-D33XW300C1X7	$2495.00 1/EA		Add To Favorites

DT33XW Indicator

Add to Cart
Cat.No.	Name	EA
316-30659311	Indicator i-DT33XW	N/A
