Ohaus® Defender® 3000 i-D33 Bench Scales

The Defender 3000 Series bench scales are ideal for general weighing, simple counting and checkweighing applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, multicolor backlit LCD display, AC or battery operation and flexible mounting capabilities.

Unique Features:

• Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode display changes color (yellow/green/red) to alert when within the target weight range.
• This tough industrial scale features a 304-stainless steel platform, powder-coated steel tubular frame, column and aluminum load cell. Indicator features a durable ABS housing and powder coated steel mounting bracket.
• Features software for Parts Counting, Checkweighing and Totalization. Includes RS232 with optional second port USB Device or Ethernet for printing or data connectivity.

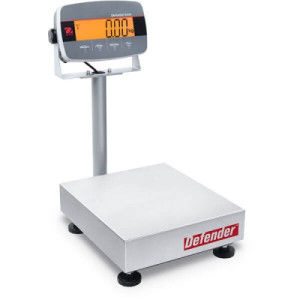

Column Mount Bench Scales

Model	i-D33P15B1R1	i-D33P30B1R1	i-D33P75B1R1	i-D33P75B1L2	i-D33P150B1L2	i-D33P150B1X2	i-D33P300B1X2	i-D33P300B1V3	i-D33P600B1V3
Capacity x Default Readability	15 kg x 2 g 30 lb x 0.005 lb 480 oz x 0.1 oz	30 kg x 5 g 60 lb x 0.01 lb 960 x 0.2 oz	75 kg x 10 g 150 lb x 0.02 lb 2,400 oz x 0.5 oz	75 kg x 10 g 150 lb x 0.02 lb 2,400 oz x 0.5 oz	150 kg x 20 g 300 lb x 0.05 lb 4,800 oz x 1 oz	150 kg x 20 g 300 lb x 0.05 lb 4,800 oz x 1 oz	300 kg x 50 g 600 lb x 0.1 lb	300 kg x 50 g 600 lb x 0.1 lb	600 kg x 100 g 1200 lb x 0.2 lb
Capacity x Certified/Approved Readability	15 kg x 5 g 30 lb x 0.01 lb 480 oz x 0.2 oz	30 kg x 10 g 60 lb x 0.02 lb 960 oz x 0.5 oz	75 kg x 50 g 150 lb x 0.05 lb 2,400 oz x 1 oz	75 kg x 50 g 150 lb x 0.05 lb 2,400 oz x 1 oz	150 kg x 50 g 300 lb x 0.1 l	150 kg x 50 g 300 lb x 0.1 lb	150 kg x 50 g 300 lb x 0.1 lb	300 kg x 100 g 600 lb x 0.2 lb	600 kg x 200 g 1200 lb x 0.5 lb
Maximum Displayed Resolution	1:7,500	1:6,000	1:7,500	1:7,500	1:7,500	1:7,500	1:6,000	1:6,000	1:6,000
Linearity/Repeatability	±1d
Maximum Certified Resolution	1:3,000
Indicator	ABS indicator
Column	330 mm / 13 in high powder-coated steel			680 mm / 26.8 in high powder-coated steel				980 mm / 38.6 in high powder-coated steel
Base Construction	Stainless steel removable weighing platform, powder-coated steel base construction, silicon sealed aluminum loadcell against moisture
Safe Overload Capacity	150% of maximum capacity
Stabilization Time	Within 1 second
Operating Temperature Range	14°F to 104°F / -10°C to 40°C
Scale Dimensions (A x B x C x D x E x F)	14 x 12 x 4.8 x 3 x 21.3 x 19.3 in			21.7 x 16.5 x 5.3 x 3.1 x 35.3 x 27 in		25.6 x 19.7 x 5.9 x 3.5 x 35.2 x 30.9 in		31.5 x 23.6 x 6.1 x 3.5 x 47 x 36.7 in



Add to Cart
Cat.No.	Model	EA
316-30685174	i-D33P15B1R1	$1066.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685183	i-D33P15B1R5	$1293.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685184	i-D33P150B1L2	$1293.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685193	i-D33P150B1X2	$1401.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685194	i-D33P300B1X2	$1401.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685199	i-D33P300B1V3	$1509.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685175	i-D33P30B1R1	$1066.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685176	i-D33P75B1R1	N/A	Add to Cart
316-30685200	i-D33P600B1V3	$1509.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites

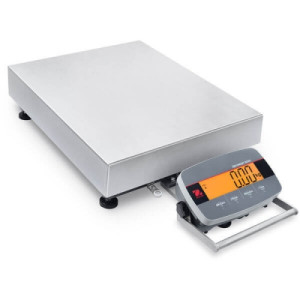

Front Mount Bench Scales

Model	i-D33P15B1R5	i-D33P30B1R5	i-D33P75B1R5	i-D33P75B1L5	i-D33P150B1L5	i-D33P150B1X5	i-D33P300B1X5
Capacity x Default Readability	15 kg x 2 g 30 lb x 0.005 lb 480 oz x 0.1 oz	30 kg x 5 g 60 lb x 0.01 lb 960 x 0.2 oz	75 kg x 10 g 150 lb x 0.02 lb 2,400 oz x 0.5 oz	75 kg x 10 g 150 lb x 0.02 lb 2,400 oz x 0.5 oz	150 kg x 20 g 300 lb x 0.05 lb 4,800 oz x 1 oz	150 kg x 20 g 300 lb x 0.05 lb 4,800 oz x 1 oz	300 kg x 50 g 600 lb x 0.1 lb
Capacity x Certified/Approved Readability	15 kg x 5 g 30 lb x 0.01 lb 480 oz x 0.2 oz	30 kg x 10 g 60 lb x 0.02 lb 960 oz x 0.5 oz	75 kg x 50 g 150 lb x 0.05 lb 2,400 oz x 1 oz	75 kg x 50 g 150 lb x 0.05 lb 2,400 oz x 1 oz	150 kg x 50 g 300 lb x 0.1 lb	150 kg x 50 g 300 lb x 0.1 lb	300 kg x 100 g 600 lb x 0.2 lb
Maximum Displayed Resolution	1:7,500	1:6,000	1:7,5001:7,5001:7,5001:7,500				1:6,000
Linearity/Repeatability	±1d
Maximum Certified Resolution	1:3,000
Indicator	ABS indicator
Mount	304 stainless steel front-mount bracket with handle
Base Construction	Stainless steel removable weighing platform, powder-coated steel base construction, silicon sealed aluminum loadcell against moisture
Safe Overload Capacity	150% of maximum capacity
Stabilization Time	Within 1 second
Operating Temperature Range	14°F to 104°F / -10°C to 40°C
Scale Dimensions (A x B x C x D x E x F)	14 x 12 x 4.8 x 3 x 5.1 x 25.4 in			21.7 x 16.5 x 5.3 x 3.1 x 5.2 x 33.1 in		25.6 x 19.7 x 5.9 x 3.5 x 5.2 x 37 in



Add to Cart
Cat.No.	Model	EA
316-30685205	i-D33P75B1R5	$908.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685212	i-D33P75B1L5	$1049.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685213	i-D33P150B1L5	$1049.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685218	i-D33P150B1X5	$1352.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685219	i-D33P300B1X5	$1352.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
316-30685203	i-D33P15B1R5	N/A	Add to Cart
316-30685204	i-D33P30B1R5	N/A	Add to Cart

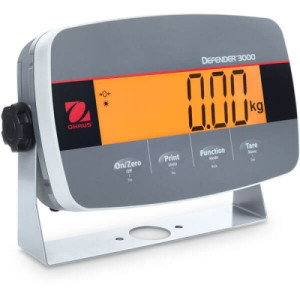

ABS Plastic Indicator

Add to Cart
Cat.No.	Name	EA
316-30648433	Indicator i-DT33P	$443.00 1/EAAdd To Favorites	Add to Cart	Add To Favorites
