Ohaus® Defender® 3000 Floor Scales

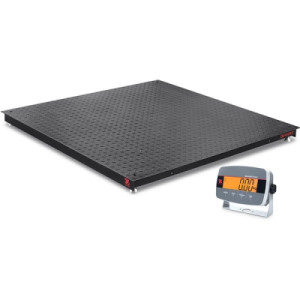

Defender 3000 Floor Platforms meet dry or washdown weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that can change color when in check mode. Scale also includes counting and totalization modes. Stainless steel bases include IP68 loadcells for wet areas. Ramps and mounting plates are available.

Unique Features:

• Powder coated carbon steel, flat surface decks with 4 alloy steel load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction.
• Platforms available from in sizes of 3x3 feet, 4x4 feet and 5x5 feet, and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.
• Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.
• Four alloy steel shear beam load cells with top-adjustable height swiveling ball-in-cup design feet to ease installation. Stainless steel bases feature washdown IP68 loadcells for wet area use.

Models (Powder Coated)	i-DF33P2500B1R i-DF33XW2500B1R	i-DF33P2500B1L i-DF33XW2500B1L	i-DF33P5000B1L i-DF33XW5000B1L	i-DF33P5000B1X i-DF33XW5000B1X
Capacity x Readability	2,500 lb x 0.5 lb 1,250 kg x 0.2 kg	2,500 lb x 0.5 lb 1,250 kg x 0.2 kg	5,000 lb x 1 lb 2,500 kg x 0.5 kg	5,000 lb x 1 lb 2,500 kg x 0.5 kg
NTEP Certified Resolution	1:5,000
Platform Size (A x B x min H)	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in		5 ft x 5 ft x 3.5 in
Platform Material	Powder coated carbon steel, raised treaded surface, fixed top plate 5mm / 0.196 in thick
Indicator	ABS plastic indicator (i-DT33P) or 304 stainless steel indicator (i-DT33XW)
Display	6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Keyboard	4 membrane function keys
Load Cell Model	4 x alloy steel, shear beam, NTEP Class III M
Load Cell Capacity Emax	550 kg	550 kg	1,100 kg	1,100 kg
Junction Box	IP65, 304 stainless steel, with 20’ EasyConnect cable
Weighing Units	kg, lb, t
Interface	RS232 included, optional USB, Ethernet
Maximum Central Load	160% of maximum capacity

Add to Cart
Cat.No.	Model	EA
316-30837601	i-DF33P2500B1R	$1850.00 1/EA		Add To Favorites
316-30837691	i-DF33XW2500B1R	$1950.00 1/EA		Add To Favorites
316-30837603	i-DF33P2500B1L	$2100.00 1/EA		Add To Favorites
316-30837692	i-DF33XW2500B1L	$2200.00 1/EA		Add To Favorites
316-30837604	i-DF33P5000B1L	$2100.00 1/EA		Add To Favorites
316-30837693	i-DF33XW5000B1L	$2200.00 1/EA		Add To Favorites
316-30716508	i-DF33P5000B1X	$2300.00 1/EA		Add To Favorites
316-30716510	i-DF33XW5000B1X	$2400.00 1/EA		Add To Favorites
