Protector® XL Floor-Mounted Laboratory Hoods

By Labconco

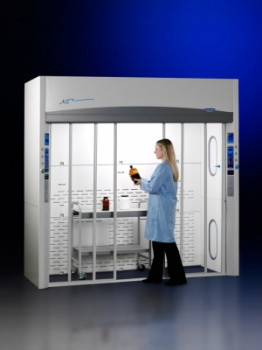

Protector® XL Floor-Mounted Laboratory Hoods

Protector XL Floor-Mounted Laboratory Hoods (sometimes called Walk-In Hoods) accommodate laboratory procedures that require oversized equipment or maximum working height. Models with vertical-rising sashes meet the SEFA-1 standard of a low velocity high performance hood and may be operated as low as 60 fpm. Models with horizontal-sliding sashes have a loading height of 73.5" (186.7 cm), suitable for applications requiring tall distillation racks, extraction apparatus or large drums.

Models Feature

  • By-pass airflow design
  • By-pass block
  • Glacier white powder-coated steel exterior
  • Chemical-resistant molded composite panel liner and baffle
  • Opti-Zone Baffles with flame spread less than 25 per ASTM E84. Baffles are removable for cleaning
  • Removable front and side panels and exterior and interior service access panels for access to plumbing and electrical wiring
  • Pre-wired T8 fluorescent lighting with vapor-proof design and ADA-compliant light and blower switches
  • 73.5" (187 cm) high sightline from the floor to the header panel
  • 4', 5', 6' and 8' models have two tempered safety glass vertical-rising sashes with powder-coated aluminum sash handles and powder-coated steel sash tracks with Clean-Sweep slots. Upper sash handle also includes Clean-Sweep openings
  • 8', 10', 12' and 16' models have four tempered safety glass horizontal-sliding sashes with powder-coated aluminum sash tracks
  • Vertical-rising sash models have 63.6" (162 cm) loading height
  • Horizontal-sliding sash models have 73.5" (187 cm) loading height
  • Factory prepared for up to eight service fixtures including two gooseneck faucets
  • Factory prepared for up to four electrical duplex receptacles and an airflow monitor
  • Powder-coated, stainless steel 12.8" ID exhaust connection(s)
  • Shipped in multiple sections: top, bottom and sashes


Fixtures Models May Feature

  • Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided
  • One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' and larger models only, one additional pre-wired GFCI electrical duplex receptacle on lower left side

Options

  • 4', 5', 6', 8' widths in vertical-rising sash models
  • 8', 10’, 12’, 16’ widths in horizontal-sliding sash models
  • Interior depths of 30", 36" and 48"


Required Accessories (Not Included)

  • Remote blower
  • Ductwork


Optional Accessories

  • Service Fixture Kits
  • Electrical Duplex Kits
  • Guardian Airflow Monitor Kits
  • Tissue Screen Kit
  • Distillation Grid Kits
  • Ceiling Enclosure and Rear Finish Panel Kits


Compliance

  • SEFA 1
  • NFPA 45
  • ASTM E84
  • ASHRAE 110
  • ANSI Z9.5
  • CFR 29, Part 1910
  • SEFA 8
  • UL 61010-1
  • CAN/CSA C22.2 No. 61010.1
  • UL 1805

4' Floor-Mounted Laboratory Hoods with Vertical Rising Sash


Cat.No. Name Voltage Addl. Info. EA
1195-112417000 4' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 37.7" exterior depth $17295.00
1/EA
Add To Favorites
1195-112417002 4' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 37.7" $18480.00
1/EA
Add To Favorites
1195-112417020 4' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 37.7" $17295.00
1/EA
Add To Favorites
1195-112417021 4' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 37.7" $18205.00
1/EA
Add To Favorites
1195-112427000 4' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 43.7" exterior depth $18475.00
1/EA
Add To Favorites
1195-112427002 4' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 43.7" $19660.00
1/EA
Add To Favorites
1195-112427020 4' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 43.7" $18475.00
1/EA
Add To Favorites
1195-112427021 4' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 43.7" $19375.00
1/EA
Add To Favorites
1195-112437000 4' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 55.7" exterior depth $20645.00
1/EA
Add To Favorites
1195-112437002 4' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 55.7" $21810.00
1/EA
Add To Favorites
1195-112437020 4' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 55.7" $20645.00
1/EA
Add To Favorites
1195-112437021 4' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 55.7" $21545.00
1/EA
Add To Favorites

5' Floor-Mounted Laboratory Hoods with Vertical Rising Sash


Cat.No. Name Voltage Addl. Info. EA
1195-112517000 5' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 37.7" exterior width $19620.00
1/EA
Add To Favorites
1195-112517002 5' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 37.7" $20810.00
1/EA
Add To Favorites
1195-112517020 5' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 37.7" $19620.00
1/EA
Add To Favorites
1195-112517021 5' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 37.7" $20525.00
1/EA
Add To Favorites
1195-112527000 5' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 43.7" exterior width $20775.00
1/EA
Add To Favorites
1195-112527002 5' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 43.7" $21950.00
1/EA
Add To Favorites
1195-112527020 5' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 43.7" $20775.00
1/EA
Add To Favorites
1195-112527021 5' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 43.7" $21680.00
1/EA
Add To Favorites
1195-112537000 5' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 55.7" exterior width $22915.00
1/EA
Add To Favorites
1195-112537002 5' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 55.7" $24120.00
1/EA
Add To Favorites
1195-112537020 5' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 55.7" $22915.00
1/EA
Add To Favorites
1195-112537021 5' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 55.7" $23820.00
1/EA
Add To Favorites

6' Floor-Mounted Laboratory Hoods with Vertical Rising Sash


Cat.No. Name Voltage Addl. Info. EA
1195-112617000 6' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 37.7" exterior width $21900.00
1/EA
Add To Favorites
1195-112617002 6' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 37.7" $23090.00
1/EA
Add To Favorites
1195-112617020 6' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 37.7" $21900.00
1/EA
Add To Favorites
1195-112617021 6' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 37.7" $22810.00
1/EA
Add To Favorites
1195-112627000 6' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 43.7" exterior width $23095.00
1/EA
Add To Favorites
1195-112627002 6' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 43.7" $24270.00
1/EA
Add To Favorites
1195-112627020 6' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 43.7" $23095.00
1/EA
Add To Favorites
1195-112627021 6' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 43.7" $24005.00
1/EA
Add To Favorites
1195-112637000 6' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 55.7" exterior width $25215.00
1/EA
Add To Favorites
1195-112637002 6' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 55.7" $26395.00
1/EA
Add To Favorites
1195-112637020 6' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 55.7" $25215.00
1/EA
Add To Favorites
1195-112637021 6' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 55.7" $26125.00
1/EA
Add To Favorites

8' Floor-Mounted Laboratory Hoods with Vertical Rising Sash


Cat.No. Name Voltage Addl. Info. EA
1195-112817000 8' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 37.7" exterior width $25830.00
1/EA
Add To Favorites
1195-112817002 8' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 37.7" $27025.00
1/EA
Add To Favorites
1195-112817020 8' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 37.7" $25830.00
1/EA
Add To Favorites
1195-112817021 8' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 37.7" $26745.00
1/EA
Add To Favorites
1195-112827000 8' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 43.7" exterior width $27005.00
1/EA
Add To Favorites
1195-112827002 8' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 43.7" $28200.00
1/EA
Add To Favorites
1195-112827020 8' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 43.7" $27005.00
1/EA
Add To Favorites
1195-112827021 8' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 43.7" $27920.00
1/EA
Add To Favorites
1195-112837000 8' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 55.7" exterior width $29140.00
1/EA
Add To Favorites
1195-112837002 8' Protector XL Floor-Mounted Hood, 2 service fixtures & GFCI Duplex 100-115V 55.7" $30320.00
1/EA
Add To Favorites
1195-112837020 8' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 55.7" $29140.00
1/EA
Add To Favorites
1195-112837021 8' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 55.7" $30050.00
1/EA
Add To Favorites

8' Floor-Mounted Laboratory Hoods with Horizontal Sliding Sash


Cat.No. Name Voltage Addl. Info. EA
1195-112816000 8' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 37.7" exterior width $24250.00
1/EA
Add To Favorites
1195-112816002 8' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 37.7" $25440.00
1/EA
Add To Favorites
1195-112816020 8' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 37.7" $24250.00
1/EA
Add To Favorites
1195-112816021 8' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 37.7" $25075.00
1/EA
Add To Favorites
1195-112826000 8' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 43.7" exterior width $25420.00
1/EA
Add To Favorites
1195-112826002 8' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 43.7" $26600.00
1/EA
Add To Favorites
1195-112826020 8' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 43.7" $25420.00
1/EA
Add To Favorites
1195-112826021 8' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 43.7" $26225.00
1/EA
Add To Favorites
1195-112836000 8' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 55.7" exterior width $27500.00
1/EA
Add To Favorites
1195-112836002 8' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 55.7" $28685.00
1/EA
Add To Favorites
1195-112836020 8' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 55.7" $27500.00
1/EA
Add To Favorites
1195-112836021 8' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 55.7" $28310.00
1/EA
Add To Favorites

10' Floor-Mounted Laboratory Hoods with Horizontal Sliding Sash


Cat.No. Name Voltage Addl. Info. EA
1195-112016000 10' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 37.7" exterior width $28690.00
1/EA
Add To Favorites
1195-112016002 10' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 37.7" $29945.00
1/EA
Add To Favorites
1195-112016020 10' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 37.7" $28690.00
1/EA
Add To Favorites
1195-112016021 10' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 37.7" $29580.00
1/EA
Add To Favorites
1195-112026000 10' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 43.7" exterior width $29845.00
1/EA
Add To Favorites
1195-112026002 10' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 43.7" $31105.00
1/EA
Add To Favorites
1195-112026020 10' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 43.7" $29845.00
1/EA
Add To Favorites
1195-112026021 10' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 43.7" $30735.00
1/EA
Add To Favorites
1195-112036000 10' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 55.7" exterior width $31935.00
1/EA
Add To Favorites
1195-112036002 10' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 55.7" $33190.00
1/EA
Add To Favorites
1195-112036020 10' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 55.7" $31935.00
1/EA
Add To Favorites
1195-112036021 10' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 55.7" $32830.00
1/EA
Add To Favorites

12' Floor-Mounted Laboratory Hoods with Horizontal Sliding Sash


Cat.No. Name Voltage Addl. Info. EA
1195-112116000 12' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 37.7" exterior width $33215.00
1/EA
Add To Favorites
1195-112116002 12' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 37.7" $34485.00
1/EA
Add To Favorites
1195-112116020 12' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 37.7" $33215.00
1/EA
Add To Favorites
1195-112116021 12' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 37.7" $34105.00
1/EA
Add To Favorites
1195-112126000 12' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 43.7" exterior width $34370.00
1/EA
Add To Favorites
1195-112126002 12' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 43.7: $35630.00
1/EA
Add To Favorites
1195-112126020 12' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 43.7" $34370.00
1/EA
Add To Favorites
1195-112126021 12' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 43.7" $35260.00
1/EA
Add To Favorites
1195-112136000 12' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 55.7" exterior width $36455.00
1/EA
Add To Favorites
1195-112136002 12' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 55.7" $37720.00
1/EA
Add To Favorites
1195-112136020 12' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 55.7" $36455.00
1/EA
Add To Favorites
1195-112136021 12' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 55.7" $37360.00
1/EA
Add To Favorites

16' Floor-Mounted Laboratory Hoods with Horizontal Sliding Sash


Cat.No. Name Voltage Addl. Info. EA
1195-112216000 16' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 37.7" exterior width $42240.00
1/EA
Add To Favorites
1195-112216002 16' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 37.7" $43490.00
1/EA
Add To Favorites
1195-112216020 16' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 37.7" $42240.00
1/EA
Add To Favorites
1195-112216021 16' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 37.7" $43115.00
1/EA
Add To Favorites
1195-112226000 16' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 43.7" exterior width $43385.00
1/EA
Add To Favorites
1195-112226002 16' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 43.7" $44645.00
1/EA
Add To Favorites
1195-112226020 16' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 43.7" $43385.00
1/EA
Add To Favorites
1195-112226021 16' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 43.7" $44285.00
1/EA
Add To Favorites
1195-112236000 16' Protector XL Floor-Mounted Hood, no service fixtures 100-115V 55.7" exterior width $45485.00
1/EA
Add To Favorites
1195-112236002 16' Protector XL Floor-Mounted Hood, 2 service fixtures & 2 GFCI Duplexes 100-115V 55.7" $46745.00
1/EA
Add To Favorites
1195-112236020 16' Protector XL Floor-Mounted Hood, no service fixtures 208-230V 55.7" $45485.00
1/EA
Add To Favorites
1195-112236021 16' Protector XL Floor-Mounted Hood, 2 service fixtures 208-230V 55.7" $46365.00
1/EA
Add To Favorites

The following items have been added to your cart:

Choose a favorite list for this item:

Catalog Number Description Price
$

Returns/Order support

Please fill out the form below if you want to request order support from Krackeler Scientific.


Quick Order

* Required


New Year Price Updates

We are currently working diligently to update our website pricing information for the New Year. If you place an order, you will be acknowledged with any corrected pricing. If you'd like the most current information sooner, please don't hesitate to drop us an email or give us a call and we'd be happy to assist. Thank you for your patience while we are updating.

800-334-7725
office@krackeler.com


Play Video

To Request a Quote

  1. Search or Browse for items and add to them to your Shopping Cart.
  2. Click the "Request Quote" button at the bottom of the Shopping Cart page.
  3. Fill out required fields.
  4. Optionally you can convert to standard checkout mode by choosing a payment type.
  5. Click "Request Quote" at the bottom of the page.

You will be contacted with a quote.

To Order From a Quote

  1. Register and login to the website.
  2. Receive a quote from your sales representative or customer service.
  3. Have your copy of the quote in hand.
  4. Visit our quote module to search for your quote.
Back to Top
