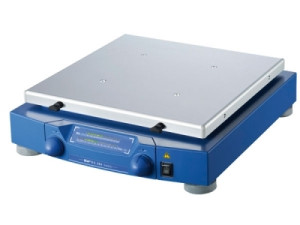

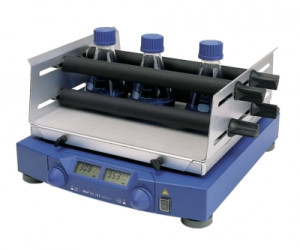

IKA® KS / HS 260 Orbital and Reciprocating Shakers
By Ika Works
The KS / HS 260 are compact, flat shakers with an ideal swivel motion and a maximum shaking weight of 7.5 kg. The KS 260 features an orbital shaking movement, while the HS 260 is a reciprocating shaker. Both models are available in Basic and Control versions. All models feature:
- Electronic adjustment of speed and timer
- LED display for speed and time adjustment
- Wide range of attachment combinations (available separately) make it possible to use almost all shapes and sizes of vessels
The Control units have all the benefits of the Basic Shakers, with the additional features:
- Digital display makes it possible to read the speed, timer function and operating modes
- Electronic time switching clock: 0 - 9 h 59 min or continuous operation (endless)
- With integrated end point positioning (for automated robot-controlled sampling)
- All functions can be controlled and documented with labworldsoft®
- Special version with reverse rotating direction on request
| Technical Data | KS 260 | HS 260 | |
| Shaking Movement | Orbital | Reciprocating | |
| Orbital Diameter | 10mm | 20mm | |
| Max. Shaking Weight (with attachment) | 7.5 kg | ||
| Motor Rating Input / Output | 45 / 10 W | ||
| Permissible ON time | 100% | ||
| Infinitely Adjustable Speed Range | Basic | 20 – 500 rpm | 20 – 300 rpm |
| Control | 10 – 500 rpm | 10 – 300 rpm | |
| Speed Display | Basic | LED line | |
| Control | Digital | ||
| Timer | Basic | Continuous / 5 – 50 min | |
| Control | Continuous / 0 – 9 h 59 min | ||
| Dimensions (W x D x H) | 360 x 420 x 98mm | 360 x 420 x 100mm | |
| Weight | Basic | 8.5 kg | |
| Control | 8.8 kg | ||
| Permissible Ambient Temperature | 5 – 50°C | ||
| Permissible Relative Humidity | 80% | ||
| Interface | Control | R 232 / Analog | |
