Eberbach Shaker Accessories

Platform and Accessories

The following accessories fit Eberbach 5900 series shaker.

• Cat.No. 286-5910 Platform with 828 holes for mounting flask holders, aluminum.
• Cat.No. 286-5913 Threaded Strips add convenience in adding and removing Cat.No. 286-6090 flask holders (see page 978) without disassembling platform from shaker.
• Cat.No. 286-5915 Utility Carrier can secure four 5-gallon solution bottles. Slots in two sides accommodate Cat.No. 286-5917, 24" Crosswise Bar Clamp, which is included. Aluminum.
• Cat.No. 286-5917 Crosswise Bar Clamp engages in slots of Cat.No. 286-5915 Utility Carrier to secure various size and shape containers. Rubber covered with wing nut.

Flask Carriers and Accessories

• Cat.No. 286-6080 Flask Carrier. Nickel plated bronze spring clips hold flasks. Flask holders are bolted to the base. Complete with flask holders and mounting screws. Aluminum carrier plate measures 22-1/4 x 12".
• Cat.No. 286-6061 Carrier Plate, Small Size has 231 holes for mounting various sizes or quantities of flask holders. Complete with mounting screws but without flask holders. 22-1/4 x 12" aluminum.
• Cat.No. 286-6160. For variable speed power units only. Nickel plated bronze spring clips hold flasks. Flask holders are bolted to base. Complete with flask holders and mounting screws. Small size aluminum plate.
• Cat.No. 286-6161 Carrier Plate has 589 holes for mounting various sizes or quantities of flask holders. Complete with mounting screws but without flask holders. Large aluminum plate.
• Cat.No. 286-6170 Flask Carrier. Similar to 286-6160. Complete with flask holders and mounting screws.
• Cat.No. 286-6180 Flask Carrier. Similar to 286-6160. Complete with flask holders and mounting screws.
• Cat.No. 286-6190 Tiering Posts, 10". To mount flask carrier plates of the same size one above the other.
• Cat.No. 286-6191 Tiering Posts, 6". To tier flask carriers where 6" of separation will allow for positioning containers.

Box Carrier and Accessories

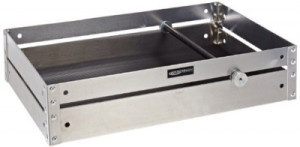

• Cat. No. 286-6040 Utility Box Carrier holds various size and shape containers including test tube supports. Slots in the four sides accommodate both crosswise and lengthwise bar clamps. Rubber covered clamps may be secured anywhere in the slots by wing nuts, to hold for example: six 1000mL, two 4000mL Erlenmeyer flasks, or five Kahn tube racks. Vertical rods with supports can be added. Complete with one Cat.No. 286-6042 crosswise bar clamp, resilient mat and mounting screws. Aluminum box measures 18 x 12 x 4", with rubber covered floor.
• Cat. No. 286-6042 Crosswise Bar Clamp, 13" long rubber covered bar with wing nuts. For use with Cat. No. 286-6040.
• Cat. No. 286-6044 Lengthwise Bar Clamp, 19" long rubber covered bar with wing nuts. For use with Cat. No. 286-6040.
• Cat. No. 286-6046 Vertical Rod with Support to secure various containers. Complete with mounting screws. 1/2" diameter x 18" aluminum rod threads into top of aluminum support.
• Cat. No. 286-6050 Adapter is available to increase shaking capacity. Fits shaker models 286-6000 and -6005 only. Holds two Utility Box Carriers, two Small Base Flask Carriers, or one of each. Complete with mounting screws. Dimensions: 26-1/2 x 14-1/4 x 1".
