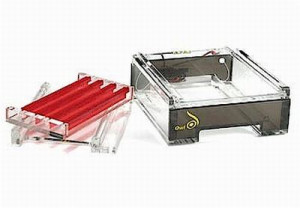

Owl™ D3-14 Wide Gel Electrophoresis System
By Owl Separation SystemsFor screening PCR samples
The Owl™ horizontal D3-14 wide gel system offers a simple, convenient, and fast method for screening multiple samples on a single agarose gel. Ideal for screening PCR samples, plasmid preps, restriction mapping, and cloning. 25 to 200 samples can be run simultaneously on one gel, producing clear, tight banding patterns with no "smiling." The unique electrode placement allows this gel to be run quickly without compromising the resolution.
The D3-14 system incorporates EasyCast™ casting design with an external caster. The UVT gel tray is fitted with a gasket which allows the tray to fit snugly into the external gel caster to provide a leakproof seal without tape. Sample loading is greatly enhanced using micro well pipette format combs (and a multichannel pipette) engineered specifically for use with this system. Using these combs and a multichannel pipette, samples may be loaded directly from a 96-well plate, 8 or 12 at a time. Sample loading with a multichannel pipette speeds up transfer and reduces the chance of sample order error.
- Gel Size: (W x L) 23cm x 14cm
- Footprint: (W x L x H) 27cm x 30cm x 11cm
- Running Buffer Volume: 800mL
