Pall Gelman Versapor® Membranes
By Pall Life Sciences

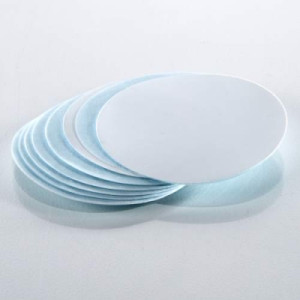

Composed of an acrylic copolymer on a nylon substrate, resulting in a highly microporous hydrophilic membrane. Versapor® membranes are designed for applications that require a filter with excellent retention properties combined with tensile strengths in excess of 3,000 psi. Provided nonsterile in a variety of pore sizes and diameters. Sterilizable by UV or gamma radiation, 70% alcohol or EtO, if desired.
Specifications for Versapor Membranes:
| Typical Flow Rates * | Minimum Bubble Point | |||
| Pore Size | Water | Air | Water | Kerosene |
| 0.2µm | 17mL/min/cm2 | 1.8Lpm/cm2 | 1.8kg/cm2 | 0.9kg/cm2 |
| 0.45 | 44 | 5.5 | 1.1 | 0.6 |
| 0.8 | 150 | 15 | 0.7 | 0.4 |
| 1.2 | 310 | 22 | 0.4 | 0.2 |
| 3 | 590 | 52 | 0.2 | 0.1 |
* at 520mm Hg
Maximum operating temperature in water is 88°C. Typical extractables from boiling water, less than ±3%. Typical thickness is 190 µm (7.5 mils).
