Corning® Hot Plate/Stirrers

By Corning

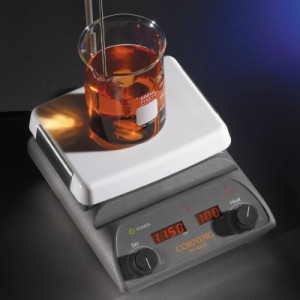

Corning® Hot Plate/Stirrers

Corning® hot plates/stirrers have a durable glass-ceramic Pyroceram® top and offer superior performance and reliability in a low profile, space-saving design. New digital display hot plates/stirrers are available in 5 x 7" and 10 x 10" top sizes, and a standard model is available in a 4 x 5" size.

New Digital Stirring Hot Plates offer:

  • Digital LED temperature display is adjustable in 5°C increments that blinks until set temperature is reached.
  • Digital LED speed display gives you better control of your stirring process.
  • Microprocessor maintains consistent and repeatable temperature settings from 5°C (if ambient temperature is 0°C or lower) up to 550°C.
  • Exclusive closed-loop stirring control monitors and regulates the stirring speed for aqueous, viscous, or semi-solid solutions.
  • Automatic ramp up speed adjustment minimizes decoupling.
  • Optional external temperature controller truly controls temperature inside the vessel and eliminates need to closely monitor liquid temperature.

New Digital Stirring Hot Plate Safety Features:

  • Bright LED HOT TOP icon lights up when top plate is over 60°C, even when heat control is turned off.
  • Optional temperature controller will shut off unit when controller is not in liquid.

All Corning® Stirring Hot Plates have:

  • Low-profile design that uses less space on bench tops and under hoods.
  • Two piece casting design deflects spills away from electronics and includes a built in support rod mount.
  • Hot top indicator light blinks a warning if the top is too hot to touch (>60°C; 140°F) - even when the unit is turned off.
  • 2 year warranty
  • Extra-large knobs with easy-to-read numbers provide better control, even while wearing bulky safety gloves.
  • Choice of three voltages to meet power requirements globally (see Ordering Information below).

PC-220 Analog 4 x 5" Hot Plate/Stirrers


Cat.No. Name Surface Surface Dimensions Stir Range Temp Range Dimensions, Ext. Voltage CS
1-6795-220 PC-220 Hot Plate/Stirrer Ceramic 4 x 5" 60-1100 rpm 77–896°F (25–480°C) 4.4 x 5.8 x 7.3" 120V/60Hz $591.98
1/CS
Add To Favorites
1-6796-220 PC-220 Hot Plate/Stirrer Ceramic 4 x 5" 60-1100 rpm 77–896°F (25–480°C) 4.4 x 5.8 x 7.3" 230V/50Hz $716.11
1/CS
Add To Favorites
1-6797-220 PC-220 Hot Plate/Stirrer Ceramic 4 x 5" 60-1100 rpm 77–896°F (25–480°C) 4.4 x 5.8 x 7.3" 100V/60Hz $650.62
1/CS
Add To Favorites

PC-420D Digital 5 x 7" Hot Plate/Stirrers

Cat.No. 6795-420KIT includes the hot plate plus temperature controller, support rod, and stir bar retriever.


Cat.No. Name Surface Surface Dimensions Stir Range Temp Range Dimensions, Ext. Voltage CS
1-6795-420D PC-420D Hot Plate/Stirrer Ceramic 5 x 7" 60-1150 rpm 5-550°C 4.25 x 7.75 x 11" 120V/60Hz $624.95
1/CS
Add To Favorites
1-6795-420KIT PC-420D Hot Plate/Stirrer w/ Accessories Kit Ceramic 5 x 7" 60-1150 rpm 5-550°C 4.25 x 7.75 x 11" 120V/60Hz $793.83
1/CS
Add To Favorites
1-6796-420D PC-420D Hot Plate/Stirrer (CE Marked) Ceramic 5 x 7" 60-1150 rpm 5-550°C 4.25 x 7.75 x 11" 230V/50Hz $785.50
1/CS
Add To Favorites
1-6798-420D PC-420D Hot Plate/Stirrer Ceramic 5 x 7" 60-1150 rpm 5-550°C 4.25 x 7.75 x 11" 230V/50Hz $740.60
1/CS
Add To Favorites
1-6797-420D PC-420D Hot Plate/Stirrer Ceramic 5 x 7" 60-1150 rpm 5-550°C 4.25 x 7.75 x 11" 100V/60Hz $689.12
1/CS
Add To Favorites

PC-620D Digital 10 x 10" Hot Plate/Stirrers

Cat.No. 6795-620KIT includes the hot plate plus temperature controller, support rod, and stir bar retriever.


Cat.No. Name Surface Surface Dimensions Stir Range Temp Range Dimensions, Ext. Voltage CS
1-6795-620D PC-620D Hot Plate/Stirrer Ceramic 10 x 10" 60-1150 rpm 5-550°C 4.62 x 11 x 15.37" 120V/60Hz $814.76
1/CS
Add To Favorites
1-6795-620KIT PC-620D Hot Plate/Stirrer w/ Accessories Kit Ceramic 10 x 10" 60-1150 rpm 5-550°C 4.62 x 11 x 15.37" 120V/60Hz $1015.52
1/CS
Add To Favorites
1-6796-620D PC-620D Hot Plate/Stirrer (CE Marked) Ceramic 10 x 10" 60-1150 rpm 5-550°C 4.62 x 11 x 15.37" 230V/50Hz $911.54
1/CS
Add To Favorites
1-6798-620D PC-620D Hot Plate/Stirrer Ceramic 10 x 10" 60-1150 rpm 5-550°C 4.62 x 11 x 15.37" 230V/50Hz $1000.08
1/CS
Add To Favorites
1-6797-620D PC-620D Hot Plate/Stirrer Ceramic 10 x 10" 60-1150 rpm 5-550°C 4.62 x 11 x 15.37" 100V/60Hz $897.14
1/CS
Add To Favorites
