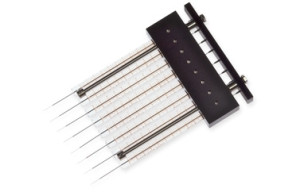

Hamilton MultiChannel Gel Loading Syringes
By Hamilton
The multichannel syringe pipettor transfers 8 or 12 DNA samples at once, easily and accurately, by row or column from a 96-well plate. Dispenses samples in volumes from 0.2 to 10.0µL simultaneously, reducing operator time and eliminating sample order error. GASTIGHT® Syringes with PTFE-tipped plungers are equipped with 2.5cm blunt tip needles, spaced 9mm from center to center. Needles are not replaceable.
Also available as a single syringe pipettor.
Tapered needle syringes
Supplied with 26.5 gauge needles, these pipettors are used for sample loading between either 0.2 or 0.3mm or thicker polyacrylamide gel casting plates. Also used in plate-to-plate transfers and spotting of nylon membranes.
Nontapered needle syringes
These syringe pipettors are equipped with 27.0 gauge needles and are used to load samples directly onto the top of the sequencing gel - not between the casting plates. Also useful for loading between 0.4mm gel plates, plate-to-plate transfers and spotting of nylon membranes.
