Fi-Streem™ Glass Stills

Fi-Streem™ Glass Stills

Available in two models and four product water capacities, these stills all have fully automatic microprocessor controls. Both models are designed with dual feed capabilities for tap or pretreated feedwater. A patented vapor trap eliminates carry-over of contaminants in the vapor-borne water droplets, and glass components prevent leaching of impurities into distilled water. Space saving designs can be wall or bench mounted.

*Fi-Streem is a registered trademark of Sanyo/Gallenkamp PLC



Fi-Streem™ II 2S Glass Stills


Easy push-button controls for automatic operation.Features:

  • Heating elements are protected with the over temperature switch.
  • 24-hour automatic operation when used with the Model A1052LS 8 liter storage bottle.

Specifications:

Auto Drain Yes
Auto Start/Stop Controls Yes
Cooling Water Capacity 30L
Feedwater Type tap/pretreated
Low Water Cut Off Yes
Max Inlet Pressure 80 psig (5.6 kg/cm2)
Min Inlet Pressure 10 psig. (0.7 kg/cm2)
Num of Heaters 2
Overall Dimensions (W x D x H) 10.5x13.8x35.4"
Shipping Weight 42 lb.
Electrical 120V, 50/60Hz

Cat.No.BrandNameVoltageEA
773-A74415-60LS Fi-Streem™ 2S Glass Still, 1.4L/hr 120V $7275.00
1/EAAdd To Favorites		 Add To Favorites
773-A74415LS Fi-Streem™ 2S Glass Still, 2L/hr 120V $7275.00
1/EAAdd To Favorites		 Add To Favorites
773-A74410LS Fi-Streem™ 2S Glass Still, 2L/hr 220V $7275.00
1/EAAdd To Favorites		 Add To Favorites

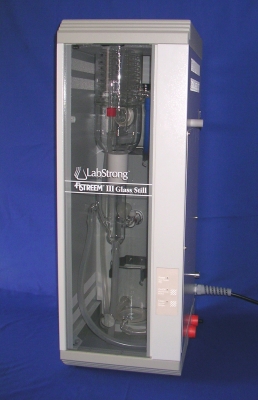

Fi-Streem™ III 4 and 8 Glass Still

Fi-Streem™ III 4 and 8 Glass Still

Features:

  • Totally enclosed still assures for safety from breakage or hot surfaces.
  • Fully automatic microprocessor controls simplify operation and cleaning, while assuring high reliability.
  • 24 hour automatic control activates still as required to maintain a full reservoir.
  • Frequency of cleaning is reduced with automatic drain cycle in tap feed models.
  • Thermistor and heat sensor offer double protection against low water conditions.
  • Float switch allows for automatic operation with other storage bottles.

Specifications:

ModelA56210-857LSA56220-857LS
Auto Drain Yes
Auto Start/Stop Controls Yes
Cooling Water Capacity 60
Feedwater Type tap/pretreated
Low Water CutOff Yes
Max Inlet Pressure 80 psig (5.6 kg/cm2)
Min Inlet Pressure 10 psig. (0.7 kg/cm2)
Num of Heaters 2 4
Overall Dimensions (W x D x H) 12 x 15 x 29.5" 19 x 15 x 29.5"
Wall Mount H 13" 30"
Shipping Weight 54lb. 72lb.
Electrical 240V,50/60Hz

Cat.No.BrandNameVoltageEA
773-A56210-857LS Fi-Streem™ III Glass Still, 4L/hr 240V $10778.00
1/EAAdd To Favorites		 Add To Favorites
773-A56218-857LS Fi-Streem™ III Glass Still, 4L/hr 208V $10801.00
1/EAAdd To Favorites		 Add To Favorites
773-A56220-857LS Fi-Streem™ III Glass Still, 8L/hr 240V $15038.00
1/EAAdd To Favorites		 Add To Favorites
773-A56228-857LS Fi-Streem™ III Glass Still, 8L/hr 208V $15038.00
1/EAAdd To Favorites		 Add To Favorites
