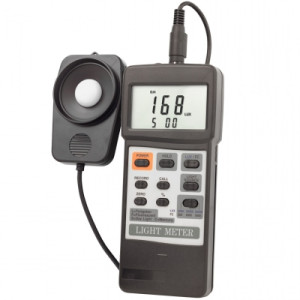

Traceable® Dual-Display Light Meter
By Control
Two displays show lux or foot- candles and the selected light source (daylight, tungsten, fluorescent, or mercury). Accuracy is ± (4% full scale plus 2 digits). Unit has zero reference settings for four light sources: tungsten, fluorescent, daylight, and mercury.
Connect to computer or data logger
Traceable® light meter has Serial RS-232 outputs that allows it to be connected to a computer or data logger for monitoring and keeping results. Individually serial-numbered Traceable® Certificate is provided to indicate instrument traceability to NIST.
Readings in lux and foot-candles
Dual-Display meter measures lux in three ranges: 0 to 1999 (1 lux resolution), 2000 to 19,990 (10 lux resolution), and 20,000 to 50,000 (100 lux resolution). Readings in foot-candles:0 to 199.9 (0.1 Fc resolution), 200 to 1999 (1 Fc resolution), 2000 to 5000 (10 Fc resolution).
Unit recalls highest, lowest, and average readings at the touch of a button. DATA HOLD button "freezes" the display to capture readings. Precise photodiode and color-correction filter provide cosine- and color-corrected measurements. Light meter displays percent differential from a reference point.
Jumbo-sized digits are 1-3/8" high. Unit is supplied with 2" diameter photocell (cable length is 40"), Traceable® Certificate, 9-volt alkaline battery, and serial computer output. Size is 7 x 3 x 1-1/4". Weight is 9.5 ounces. Replacement battery Cat.No. 291-1112.
| Ranges (Resolution) | Lux | 0 to 1999 (1 lux resolution) 2000 to 19,990 (10 lux resolution) 20,000 to 50,000 (100 lux resolution) |
| Foot-candle | 0 to 199.9 (0.1 Fc resolution) 200 to 1999 (1 Fc resolution) 2000 to 5000 (10 Fc resolution) | |
| Accuracy | ± (4% full scale plus 2 digits) | |
| Output | Serial, RS-232 | |
| Features | DATA HOLD, Select light source, Zero adjust, Recall memory (high/low/average) | |
| Traceable® Certification | NIST | |
| Probe size/cable Length | 2 inch diameter photo cell / 40 inch cable length | |
| Size/Weight | 7 x 3 x 1-1/2 inches / 9.5 ounces | |
| Cat. No. | Description |
|---|---|
| 291-3252 | Traceable® Dual-Display Light Meter |
| 291-4138 | Easy-Use Accessory Adaptor 115 VAC |
| 291-4136 | Data Acquisition System Accessory |
| 291-4325 | Data Logger Accessory |
| 291-4326 | Accessory 115 VAC Adaptor for Data Logger |
