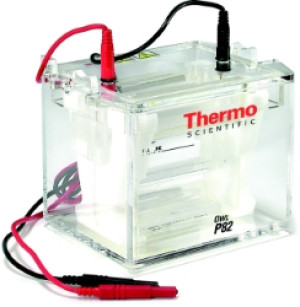

Owl™ P82 Dual-Gel Electrophoresis System
By Owl Separation Systems
The P82 Dual Gel Vertical Electrophoresis System is one of the easiest systems to run and produces flat even banding and crisp resolution. The system can run two 10cmW x 10cmL gels or one single gel when used with a blocking plate. The design allows gels to easily be placed into the device. A wedge is placed in front of the cassette(s) providing even pressure against the leak proof gasket and places the cassette(s) in the proper running position. Two sizes of wedges are provided to accommodate varying thickness of precast gels. No cooling is required. This system will accommodate 10cmW x 8cmL gels utilizing the provided adapter. Use precast acrylamide gels or pour your own gel, the P82 easily accommodates your changing needs. The device is manufactured using Owl's time tested acrylic fabrication technology.
Gel Size: 10cmW x 10cmL
Footprint: 15.2cmW x 12.4cmD x 17cmH
UBC Vol: 140mL
LBC Vol (max): 850mL
LBC Vol (min): 8cmL gel: 300ml
LBC Vol (min) 10cmL gel: 100mL
