Spectra/Por® Tube-A-Lyzer® Dialysis Device
Spectrum's Tube-A-Lyzer® is a ready-to-use, gentle separation device that combines convenience and disposability with the efficiency of dynamic dialysis to significantly increase the mass transfer rate and reduce the overall dialysis from 1-2 days to 12 hours. This self-contained, disposable device incorporates a semi-permeable membrane tubing that separates the sample chamber from the surrounding flow-through buffer chamber. The dry Biotech Grade Cellulose Ester (CE) membrane tubing is available in 6 MWCO's and the membrane-defined sample chamber is available in 2 volume sizes. The sample port provides easy access for loading, recovering and in-process testing. The housing is designed to be a flow-through dialysate chamber that can be connected to a buffer source and a waste collection vessel, or for discharging directly to drain. Tube-A-Lyzer is non-pyrogenic and can be sterilized (25 kGy gamma irradiation).

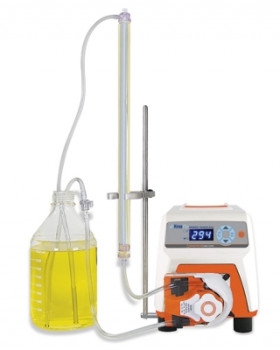

Mounted onto the support rack of the KrosFlo® Research I Pump System, Spectrum Laboratories part no. ACR1-U1S-01N (100 RPM) or ACR1-U2S-01N (600 RPM), the Tube-A-Lyzer device can be operated as a single unit or in parallel when multiple units are combined using a coupling bracket (sold separately) into a multi-unit device. A second pump head can be mounted to the pump to operate two Tube-A-Lyzer units in parallel.
