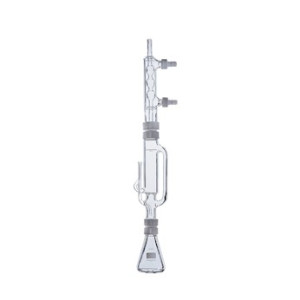

Micro Soxhlet Extraction Apparatus
By DWK - Wheaton Science ProductsWith the Wheaton Connection®
Use this apparatus for continuous extraction of analytes from a solid into an organic solvent. The Wheaton Connection® eliminates the need for hooks, springs, and clamps common to standard ground joint designs. As the flask containing the solvent is heated, vapors rise in the larger outside tube, enter the water-cooled condenser, and reliquefy. When the liquid level in the extractor reaches the top of the bent tube, siphoning action returns the extract-enriched solvent to the flask. All wetted parts are manufactured from either Wheaton 33 low extractable borosilicate glass (meets ASTM Type I Class A and USP Type I standards) or PTFE.
Kit Includes:
- 12-415501 - 85mm Condenser, 24-400 Screw Thread on Bottom, 13-425 Screw Thread on Side
- 12-415502 - Extractor, 22mm, 10 x 99 mm Body Length, With 24-400 Screw Thread on Top, 20-400 Screw Thread on Bottom
- 12-125486 - Wheaton Connection, 20-400 to 20-400
- 12-125504 - Wheaton Connection, 24-400 to 24-400
- 12-635134 - 25mL Erlenmeyer Flask, 20-400 Screw Thread
- 12-962515 - Hose Connector, 13-425
- 12-W416788 - Extraction Thimble, Glass, 15 x 60mm, 170-220 micron Porosity
