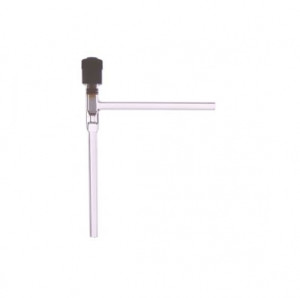

HI-VAC® Right-Angle Valves with Tip O-Ring and PTFE Plug

HI-VAC® Right-Angle Valves with Tip O-Ring and PTFE Plug

For vacuum applications up to 5 x 10 Torr. Designed with a precision external thread for fine control. This valve can be used as a bleed up to 1/2 a turn. Full open position is at 1 1/2 turns. The shaft is non-rotating and the primary seal is made with a Viton o-ring on a tapered seat. PTFE shaft can be used continuously at system temperatures of 230°C, or intermittently at 275°C. Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.


Cat.No. Name Plug Bore EA
186-826510-0004 Right-Angle Valve, Size 4 0-4mm $95.95
1/EA		 Add To Favorites
186-826510-0008 Right-Angle Valve, Size 8 0-8mm $149.57
1/EA		 Add To Favorites
186-826510-0012 Right-Angle Valve, Size 12 0-12mm $211.27
1/EA		 Add To Favorites
186-826310-0020 Right-Angle Valve, Size 20 0-20mm DISCONTINUED
