Flangeless Fittings

Flangeless Fittings

Flangeless fittings eliminate the need to flange (flare) PTFE tubing to make a connection. Just slide a flangeless ferrule onto the tubing, conical end toward the male nut, and finger tighten. Flangeless fittings can be used with all flat bottom 1/4-28, 5/16-24 and M6 threads.


Cat.No. Name EA
186-420821-0018 ETFE Flangeless Nut, 1/4-28 Thread, for 1/8" and 1.8mm OD Tubing $8.01
1/EAAdd To Favorites		 Add To Favorites
186-420821-0116 ETFE Flangeless Nut, for 1/16" OD Tubing, 1/4"-28 Thread, Use with the 420822-Series Flangeless Ferrules $8.01
1/EAAdd To Favorites		 Add To Favorites

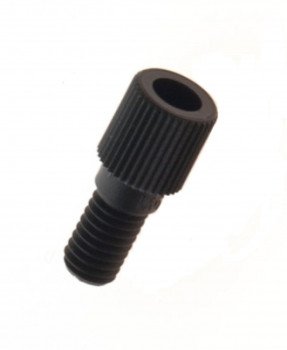

186-420821-0618 Acetal Flangeless Nut for 1/8" OD Tubing, M6 Thread, Use with the 420822-Series Flangeless Ferrules $5.83
1/EAAdd To Favorites		 Add To Favorites
186-420821-3519 PEEK Nut for 3/16" OD Tubing, 5/16"-24 Thread, Use with the 420822-Series Flangeless Ferrules $18.93
1/EAAdd To Favorites		 Add To Favorites
186-420821-6116 Acetal Flangeless Nut, M6 Thread, for 1/16" Tubing $5.83
1/EAAdd To Favorites		 Add To Favorites
186-420821-6218 Stainless Steel Nut for 1/8" OD Tubing, 1/4"-28 Thread, Use with the 420822-Series Flangeless Ferrules $63.98
1/EAAdd To Favorites		 Add To Favorites
186-420822-1019 ETFE Ferrule for 3/16" OD tubing, for Use with 420821 Series Male Nuts $9.99
1/EAAdd To Favorites		 Add To Favorites
186-953913-0001 ETFE Nut Plug 1/4"-28, Used to Seal Ports with Flat Bottom 1/4"-28 Threads $7.87
1/EAAdd To Favorites		 Add To Favorites
