Orbital Shakers
By Crystal Industries
Orbital Shakers may be used for several applications including culturing microbes, washing blots, and general mixing. A spring platform is an available accessory which can handle multiple flasks. CTI’s SilentShaker® is designed and built for a heavy workload, and provides continues shaking with no vibration or heat output. The SilentShaker® can be placed into a standard incubator, converting the incubator into a shaking incubator.
Features:
- Digital control and LED display.
- Low noise level.
- Gentle speed up and slow down.
- Automatic recovery from power outage.
- Includes standard platform with non-skid mat.
Specifications:

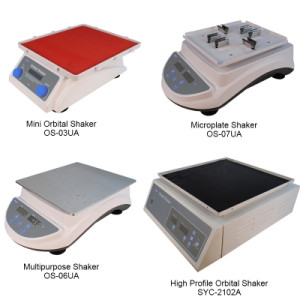

| Name | Mini Orbital Shaker | High Profile Orbital Shaker | Microplate Shaker | Multi Purpose Shaker |
| Model | OS-03UA | SYC-2102A | OS-07UA | OS-06UA |
| Speed | 30-300rpm | 150-1200rpm | 50-450rpm | |
| Speed Accuracy | ±2% | ±1%(@≤299rpm), ±2%(@>299rpm) | ±1rpm(@≤100rpm), ±1%(@>100rpm) | |
| Orbital Diameter | Ø20mm | Ø26mm | Ø2.5mm | Ø10mm |
| Timer | 0-99h 59min | 0-99h | 0-99h 59min | |
| Platform Dimensions | 12.87 x 11.38" | 15.7 x 15.7" | 10.8 x 9.3" | 12.2 x 11.2" |
| Capacity | 15 x 50mL / 12 x 100mL / 12 x 150mL or 200mL / 12 x 250mL / 4 x 500mL x4 x 1000mL Flasks / 2 x Small Tube Racks | 36 x 50mL / 24 x 100mL / 17 x 150mL or 200mL / 17 x 250mL / 12 x 500mL / 6 x 1000mL / 4 x 2000mL / 3000mL / 2 x 5000mL Flasks / 3 x Small Tube Racks | 4 x Microplates / 6 x Microplates (with OSA15 Large Platform Assembly) / 2 x Tube Racks | 20 x 25mL / 50mL, 8 x 100mL / 250mL, 6 x 500mL, 4 x 1000mL, 2 x 2000mL / 3000mL, 1 x 5000mL Flasks / 2 x Small Tube Rack |
| Max. Load | 2.5kg | 10kg | 4kg | 4.5kg |
| Display | LCD | LED | ||
| Accessories included in Standard Packaging | OSA13 (Aluminum Platform) | Standard Platform with non-skid mat | Standard Platform with 6 pcs of OSA13 (96-well Microplate Holder) | OSA21 (Universal Aluminum Platform) |
| Ambient Temperature | 5℃-40℃ | |||
| Relative Humidity | ≤80% | |||
| Power Supply | AC100-240V, 50 / 60Hz | AC220V±22V, 50Hz±1Hz | AC100-240V, 50 / 60Hz | |
| Dimensions | 345 x 240 x 111mm | 432 x 535 x 190mm | 440 x 296 x 142mm | 440 x 296 x 129mm |
| Certifications | NA | CE | cCSAus, CE, RoHS, WEEE | |
