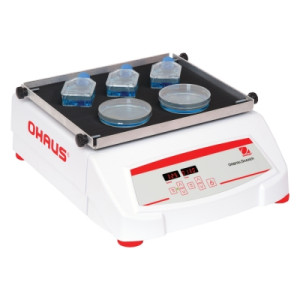

Ohaus® Heavy Duty Orbital Shakers
By Ohaus
With load capacities from 16 to 68kg and over 70 accessory options, Ohaus® Heavy Duty Shakers are designed to handle a range of applications. Available as analog or digital models with microprocessor control to provide variable speed and consistent shaking, while ramping to the set speed. Microprocessor displays the last set-point and will restart if power is interrupted. Built-in tray and non-slip rubber mat are included with all models.
- Patented Accu-Drive Shaking System ensures accuracy and speed control
- Touchpad control with independent LED displays for speed/time on digital models
- Safety features include speed ramping and load sensor
| Model | SHHD1619AL | SHHD1619DG | SHHD2325AL | AHHD2325DG | SHHD4525DG | SHHD4550DG | SHHD6825DG | SHHD6850DG |
| Speed Range | 25 to 500 rpm | 15 to 500 rpm | 25 to 500 rpm | 20 to 50 rpm | 15 to 500 rpm | 15 to 300 rpm | 15 to 500 rpm | 15 to 300 rpm |
| Timer | 1 to 120 min | 1 sec to 10 hours | 1 to 120 min | 1 sec to 160 hours | 1 sec to 160 hours | 1 sec to 160 hours | 1 sec to 160 hours | 1 sec to 160 hours |
| Motion | Orbital | Orbital | Orbital | Orbital | Orbital | Orbital | Orbital | Orbital |
| Orbit | 19mm | 19mm | 25mm | 25mm | 25mm | 51mm | 25mm | 51mm |
| Max. Weight | 16kg | 16kg | 23kg | 23kg | 45kg | 45kg | 68kg | 68kg |
| Audible Alarm | No | Yes | No | Yes | Yes | Yes | Yes | Yes |
| Load Sensor | No | Yes | No | Yes | Yes | Yes | Yes | Yes |
| Motor Type | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor | Brushless DC Motor |
| CO2 Environment | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Overload Protection | No | Yes | No | Yes | Yes | Yes | Yes | Yes |
| User Calibration (Speed) | No | Yes | No | Yes | Yes | Yes | Yes | Yes |
| RS232 Interface | No | Yes | No | Yes | Yes | Yes | Yes | Yes |
| Included Tray (L x W) | 11 x 13" | 11 x 13" | 18 x 24" | 18 x 24" | 24 x 24" | 24 x 24" | 24 x 36" | 24 x 36" |
| Tray/Platform Options | 11 x 13", 13 x 13", 18 x 18", 18 x 24", Adjustable Platform, Separatory Funnel Platform | 11 x 13", 13 x 13", 18 x 18", 18 x 24", Adjustable Platform. Separatory Funnel Platform | 18 x 24", 18 x 30", Adjustable Platform, Large Vessel Carrier Platform | 18 x 24", 18 x 30", Adjustable Platform, Large Vessel Carrier Platform | 24 x 24", Large Vessel Carrier Platform | 24 x 24", Large Vessel Carrier Platform | 24 x 36", Large Vessel Carrier Platform | 24 x 36", Large Vessel Carrier Platform |
