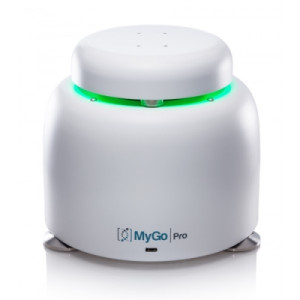

MyGo Pro Real-Time PCR Instrument
By Azura Genomics![MyGo Pro Real-Time PCR Instrument](https://krackeler.com/tt/lg/graphics/9999/jpg/fig1-2-9.jpg)
The MyGo Pro real-time PCR instrument provides unmatched performance in a convenient format. Novel Full Spectrum Optics deliver 120 optical channels of fluorescence data from every tube in parallel, with no moving parts, for reliable multiplex PCR.
Precision & Performance: The MyGo Pro demonstrates superior intra-run and inter-run analytical precision in DNA quantification and melting point analysis. Users can now address biological phenomena with subtle effects on gene expression or pathogen levels. For users performing HRM based analysis of genetic variants, the combination of thermal control, optical data quality, and HRM data analysis of the MyGo Pro system provide compelling functionality. The system can discriminate all classes of SNP, including Class 4 SNPs via HRM.
Multiplex with Full Spectrum Optics: Novel Full Spectrum Optics provide 120 channels of wavelength dependent optical data from every well every time. No other qPCR system offers this number of optical channels. Full Spectrum Optics, combined with advanced matrix deconvolution technology, enable the simultaneous analysis of at least 7 different targets in a single reaction, each monitored with a different colour of fluorescent label. The MyGo Pro comes pre-calibrated for 20 different fluorescent labels, and the software enables users to use any dye with an emission maximum between 510nm and 750nm.
Easy Analysis: Easy-to-use software and robust, high performance algorithms provide accurate results from complex data. Automated analysis of complex HRM data increases user accessibility and minimizes operator-dependent variability. Automated report generation makes life easier for service providers, and users operating within GLP quality systems.
Reliability: Designed to last, with very few moving parts, made and tested to exacting standards results in a highly reliable instrument with the option of a 5 year extended warranty.
Speed: With heating rates of 5°C per second and cooling rates of 4°C per second, the MyGo Pro is one of the fastest systems available.The system demonstrates excellent quantitative precision and speed, with 45 cycles of PCR in 33 minutes.
Compatibility: The MyGo Pro software can be installed on Mac OS X, Windows, and Linux operating systems. Use your computer and your choice of operating system.
Connectivity: The MyGo Pro software does not require a dedicated computer, so users do not need to find the space, or money, for an additional computer to run the system. In addition, the software enables the user to control multiple instruments, and simultaneously analyse multiple runs, with one computer.
Specifications
Dimensions (W x D x H) | 25 x 27 x 23cm | |
Weight | 7 kg | |
Noise | <40db(A) | |
Electrical | 100-240V, 50-60Hz | |
No. of Reactions | 32 | |
Format | 0.1mL tubes/8-tube strips | |
Reaction Volume | 10-100µL | |
Temp. Control | Method | Peltier |
Range | 37-99°C | |
Speed | 5°C/s heating/4°C/s cooling | |
Resolution | 0.01°C | |
Uniformity | 0.05°C (SD) | |
Accuracy | ±0.25°C | |
Run Time | <40 minutes | |
Fluorescence | Excitation | 500nm (blue LED) |
Detection | 510-750nm (CMOS array) | |
Channels | 120 optical channels | |
PCR | Sensitivity | Single copy detection |
Dynamic Range | 9-log | |
Precision | 1.1 fold discrimination | |
Dyes | Factory Calibrated | SYBR Green I, ResoLight, FAM, VIC, HEX, Yellow 555, Red 610, TexasRed, Cy5, CAL 540, CAL 560, CAL 590, CAL 610, CAL 635, JOE, Pulsar 650, Quasar 570, Quasar 670, Quasar 705, ROX, TAMRA, TET |
User Chosen Custom | Yes | |
Connection Options | LAN, direct connection to computer (RJ45), PC-free (USB stick) |
