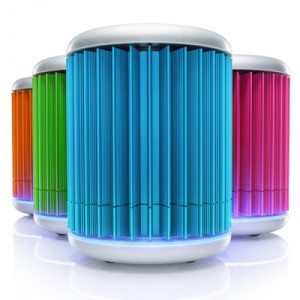

MyGo Mini Real-Time PCR Instrument
By Azura Genomics
The MyGo Mini is the world's most compact real-time PCR instrument, with no moving parts, enabling silent operation and maximum reliability. It provides users with great results over a broad range of applications.
The MyGo Mini demonstrates superior intra-run and inter-run analytical precision in DNA quantification and melting point analysis. Users can now address biological phenomena with subtle effects on gene expression or pathogen levels such as discriminating 10% differences in transcript concentrations. For users performing HRM-based analysis of genetic variants, the combination of thermal control, optical data quality, and HRM data analysis of the MyGo Mini system provides compelling functionality. The system can discriminate all classes of SNP, including Class 4 SNPs via HRM.
The MyGo Mini system comes with easy-to-use software, and robust, high performance algorithms which provide accurate results from complex data. Automated analysis of complex HRM data makes this powerful technique more accessible to non-experts, and minimizes operator-dependent variability in data analysis. Automated report generation makes life easier for service providers, and users operating within GLP quality systems.
The MyGo Mini software can be installed on Mac OS X, Windows, and Linux operating systems. The MyGo Mini is also compatible with standard 0.1mL low-profile tubes.
Specifications:
| Dimensions | W 12cm x D 12cm x H 16cm |
| Weight | 2.5 kg |
| Noise | Silent |
| Electrical | 100/240V |
| No. of Reactions | 16 |
| Format | 0.1mL tubes |
| Reaction Volume | 10 - 100µL (20µL recommended) |
| Temperature | Peltier, 37-99°C, 3°C/s heating, 1.5°C/s cooling |
| Run Time | <60 minutes |
| Connectivity | LAN, Direct connection to computer (RJ45), PC-free (USB stick) |
