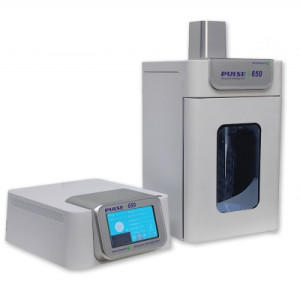

Pulse 650™ Ultrasonic Homogenizer
Like the smaller Pulse 150™, the Pulse 650™ utilizes ultrasonic waves and cavitation to disrupt cells, shear DNA and create emulsions. With up to 650 watts of power, samples from 0.1mL to 500mL can be processed. Pulsed operation, power ratios and other operating parameters are easily set using the large touch screen. Alarms alert the user to over temperature, over/no load and expiration of time.
The Pulse 650 is complete with everything needed for operation, including a soundproof enclosure for reducing noise levels. The low profile controller and soundproof enclosure are stackable to save valuable bench space. The enclosure features interior lights and a large front panel for viewing samples. A remote controlled, motorized lift provides easy probe placement. Between uses, the chamber can be decontaminated with the UV-C lights to help prevent cross contamination.
Six horns, from 2mm to 12mm, are available to meet sample volume requirements. The Pulse 650 is supplied with the 6mm horn as standard, for processing samples from 10-100mL.
Technical Specifications
| Power | 6.5 - 650 W, continuously adjustable |
| Frequency | 20 - 25 KHz |
| Cycle Time (pulse on/off) | 0.1 - 99.9 sec |
| Timer | 1 sec - 99 hours, 59 min, 59 sec |
| Duty Cycle | 0.1 - 99.9% |
| Volume | 0.1 - 500mL |
| Program Memory | 20 programs |
| Password Protection | Yes |
| Display/Control | 7" full color touch screen |
| Horn | 6mm titanium (others available, 2mm, 3mm, 8mm, 10mm, 12mm) |
| Alarms | No load, over load, end of run, over temperature |
| Electrical | 115 or 230V, 50/60Hz |
| Warranty | 2 years |
