Chromato-Vue® Large High Performance UV Cabinets
By UVP
Chromato-Vue® Viewing Cabinets provide a darkroom environment with UV fluorescence for viewing materials. The C-75, C70G and C-71 models are larger cabinets designed for chromatography, NDT and other applications.
C-75 models feature high intensity 15-watt shortwave (254nm) and longwave (365nm) UV tubes positioned on two sides of the cabinet, providing overhead UV illumination for many applications including fluorescence studies and non-destructive testing. Power switches are conveniently placed for operating the UV and interior white light, while a lightweight curtain blocks exterior light from the cabinet interior. A soft rubber viewport provides a comfortable viewing area with adequate space for glasses. Contrast control filter absorbs UV energy to protect the eyes.

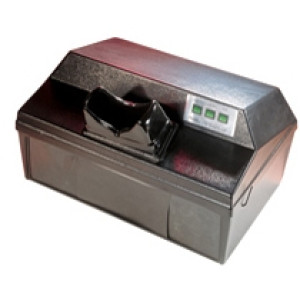

In addition to these features, the C-70G and C-71 Chromato-Vue® Cabinets have a removable bottom panel, so the cabinet may be placed over large samples or a transilluminator. C-70G cabinets include two each of 15-watt shortwave (254nm) and longwave (365nm) UV. The C-71 has four 15-watt, longwave (365nm) UV tubes on one side of the unit.
Cabinets are made of durable, lightweight plastic.
Dimensions for C-75: Interior: 17W x 14D x 6H in. (432 x 356 x 152mm). Exterior: 19.75W x 16.5D x 15.75H in. (502 x 419 x 400mm).
Dimensions for C-70G and C-71: Interior: 21W x 13D x 8H in. (533 x 330 x 203mm). Exterior: 23.4W x 15.8D x 13H in. (594 x 401 x 203mm).
Replacement Tubes:
Tube, 15-watt, 365nm: 49-34-0009-02
Tube, 15-watt, 254nm: 49-34-0008-01
