PL Series Compact and Handheld UV Lamps

PL Series ultraviolet lamps are made of durable, lightweight plastic. These lamps can be used in a variety of applications including fluorescence of stained gels and sterilization. Lamps feature models with longwave (365nm), shortwave (254nm) or multiple UV.

The compact UV Lamps (4-watts) are constructed with lightweight, easy-to-handle design. The combination model comes with a snap-on selector for switching between wavelengths. Also available in 12V style for cigarette lighter operation. Handheld UV Lamps (6-watts) feature a comfortable, ergonomically designed handle, with an on/off switch located on the back.

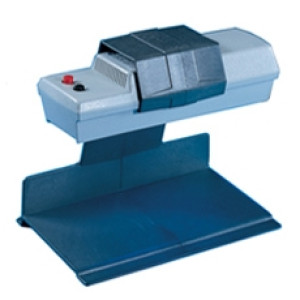

For stands, see Cat.Nos. 49-98-0020-03 (compact lamps) and 49-98-0016-03 (handheld lamps).

Replacement Tubes:
254nm, 6 watt 49-34-0013-01
365nm BLB, 6 watt 49-34-0016-01
365nm, 6 watt 49-34-0034-01
365nm/254nm, 6-watt 49-34-0015-01
3022nm, 6 watt 34-0044-01
254nm, 4 watt 34-0003-01
365nm/254nm, 4 watt 34-0004-01
365nm, 4 watt 34-0005-01
365nm BLB, 4 watt 34-0010-01

PL Series Compact UV Lamps, 4-watt

Add to Cart
Cat.No.	Name	Wavelength	Voltage	EA
49-95-0016-14	UVG-11 Compact UV Lamp	254nm UV	115V	$347.33 1/EA		Add To Favorites
49-95-0016-15	UVG-11 Compact UV Lamp, 4-watt	254nm UV	230V	$347.33 1/EA		Add To Favorites
49-95-0017-09	UVGL-15 Compact Split-Tube UV Lamp	365/254nm UV	115V	$347.33 1/EA		Add To Favorites
49-95-0017-10	UVGL-15 Compact Split-Tube UV Lamp	365/254nm UV	230V	$347.33 1/EA		Add To Favorites
49-95-0021-12	UVGL-25 Compact Split-Tube UV Lamp	254/365nm UV	115V	$430.24 1/EA		Add To Favorites
49-95-0021-10	UVGL-25 Compact Split-Tube UV Lamp	254/365nm UV	230V	$430.24 1/EA		Add To Favorites
49-95-0018-02	UVL-21 Compact UV Lamp	365nm UV	115V	$231.56 1/EA		Add To Favorites
49-95-0018-03	UVL-21 Compact UV Lamp	365nm UV	230V	$232.01 1/EA		Add To Favorites
49-95-0019-01	UVL-23 Compact UV Lamp	365nm BLB UV	115V	$211.54 1/EA		Add To Favorites
49-95-0019-03	UVL-23 Compact UV Lamp	365nm BLB UV	230V	$218.60 1/EA		Add To Favorites
49-95-0019-14	UVL-23R Compact UV Lamp	365nm BL UV	12V	$241.56 1/EA		Add To Favorites

PL Series Handheld UV Lamps, 6-watt

Add to Cart
Cat.No.	Name	Wavelength	Voltage	EA
49-95-0004-09	UVG-54 Handheld UV Lamp	254nm UV	115V	$475.98 1/EA		Add To Favorites
49-95-0004-10	UVG-54 Handheld UV Lamp	254nm UV	230V	$475.98 1/EA		Add To Favorites
49-95-0005-05	UVGL-55 Handheld Split-Tube UV Lamp	365/254nm UV	115V	$435.95 1/EA		Add To Favorites
49-95-0005-06	UVGL-55 Handheld Split-Tube UV Lamp	365/254nm UV	230V	$435.95 1/EA		Add To Favorites
49-95-0006-02	UVL-56 Handheld UV Lamp	365nm UV	115V	$304.45 1/EA		Add To Favorites
49-95-0006-03	UVL-56 Handheld UV Lamp	365nm UV	230V	$307.31 1/EA		Add To Favorites
49-95-0104-01	UVM-57 Handheld UV Lamp	302nm UV	115V	$548.87 1/EA		Add To Favorites
49-95-0104-02	UVM-57 Handheld UV Lamp	302nm UV	230V	$548.87 1/EA		Add To Favorites
49-95-0007-05	UVGL-58 Handheld UV Lamp	365/254nm UV	115V	$560.31 1/EA		Add To Favorites
49-95-0007-06	UVGL-58 Handheld UV Lamp	365/254nm UV	230V	$560.31 1/EA		Add To Favorites

Replacement Filters

Add to Cart
Cat.No.	Name	EA
49-98-0004-03	Replacement Filter for UVG-54, UVM-57 and UVGL-58	$371.63 1/EA		Add To Favorites
49-98-0005-03	Replacement Filter for UVGL-55	$290.16 1/EA		Add To Favorites
49-98-0006-03	Replacement Filter for UVL-56	$138.65 1/EA		Add To Favorites
49-98-0016-02	Replacement Filter for UVG-11 and UVGL-25	$205.83 1/EA		Add To Favorites
49-98-0017-02	Replacement Filter for UVGL-15	$162.95 1/EA		Add To Favorites
49-98-0018-02	Replacement Filter for UVL-21	$81.47 1/EA		Add To Favorites
