XX Series UV Bench Lamps
By UVP

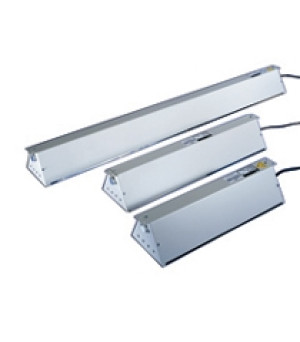

UVP's XX Series Blak-Ray® and Mineralight® Bench Lamps are available in a selection of 15, 20 and 40-watt housing. Lamps are manufactured with durable metal housing and aluminum reflectors for maximum illumination. Brackets are included for wall or ceiling mounting. These lamps are available in three fixture sizes. The XX-15 series are available in shortwave, longwave or midrange UV while the XX-20 and XX-40 models are available with either longwave or shortwave UV. Applications for lamps range from sterilization and sanitation applications to benchtop inspection and fluorescence uses.
XX-15 lamps can be mounted to the Exposure Stand, which provides a platform for UV experimentation or fluorescence. The shelf is adjustable to different levels for exposure of samples. Stand is fabricated of durable metal construction with a powder coat finish.
Dimensions:
XX-15 Styles: 18L x 6W x 4.25H in. (502 x 152 x 108mm)
XX-20 Styles: 24L x 6W x 4.25H in. (610 x 152 x 108mm)
XX-40 Styles: 48L x 6W x 4.25H in. (1260 x 152 x 108mm)
Exposure Stand for 20L x 6W x 13H in. (508 x 152 x 330mm)
Replacement Tubes:
15W Tube, 365nm: 49-34-0009-02
15W Tube, 365nm BLB: 49-34-0017-01
15W Tube, 254nm: 49-34-0008-01
15W Tube, 302nm: 49-34-0039-01
20W Tube, 365nm BLB: 49-34-0068-01
20W Tube, 254nm: 49-34-0067-01
20W Tube, 365nm BLB: 49-34-0068-02
40W Tube, 254nm: 49-34-0067-02
