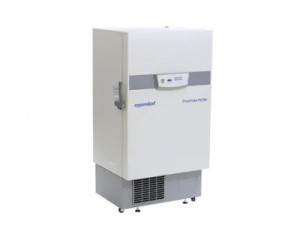

Eppendorf® CryoCube® F570 Series ULT Freezers
By New Brunswick Scientific
The Eppendorf® CryoCube® F570 series of ULT freezers minimize operating costs while providing superior protection for your critical samples. A combined insulation based on vacuum insulation panels and polyurethane foam enables extremely low energy consumption, with the freezers needing 14% less energy than their predecessors.
The CryoCube F570 series has a volume of 570L (20.1 square feet) and a temperature range from -50°C to -86°C; it offers a 5-compartment lay-out and 5 inner doors for easy sample access.
CryoCube F570: 130mm wall (polyurethane insulation), "classic" cooling liquids, air-cooling
CryoCube F570h: 130mm wall (polyurethane insulation and vacuum insulation panels), "green" cooling liquids (R290/ R170), air-cooling
PhysioCare
Besides sustainability, the main focus of the CryoCube freezers is ergonomics. The new door handle of the CryoCubes is based on the Eppendorf PhysioCare Concept: safe grip but very light force is needed to open and close the freezer door. The interface is on eye level for easy reading of all settings, and the automatic vent port enables fast re-access to your samples.
Sample safety
The CryoCube F570 series is equipped with reliable heavy-duty compressors (2-stage cascade cooling system). Quick pull-down times enable fast re-use after cleaning/defrosting of the instrument. The freezers have short recovery times after opening to provide extra sample safety. For even higher sample safety, the ULT freezers can be equipped with CO2/LN2 back-up systems and a chart recorder. Temperature monitor systems can be used to monitor the freezers remotely.
Sustainability
By using highly efficient technologies, the CryoCube F570h just needs 7.6 KWh/day. This future-oriented instrument class provides consumption levels which are ahead of most competitors within this volume class. The CryoCube F570h (115V) is certified by ENERGY STAR®.
